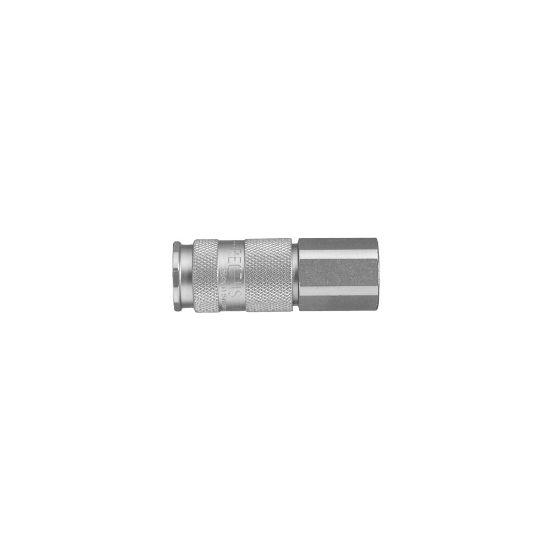

Quick Coupling with ISO 6150 C Profile, Series 84 - 84KAIW17SPN

Name: Quick Coupling with ISO 6150 C Profile, Series 84 - 84KAIW17SPN
SKU: 84KAIW17SPN
Availability: OutOfStock

Quick coupling system with nominal diameter 8 for pneumatic and fluid handling applications up to 35 bar. Coupling system with ISO 6150 C profile. Available made of brass/steel.

Availability:

Backordered

SKU: 84KAIW17SPN

Qty:

Products specifications

Attribute name	Attribute value
Length	81 mm	Outside Diameter	29 mm
Seal Material	NBR	Diameter	8 nom
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	100 °C
Flow Rate	1960 L/min	Hex Size	27 mm
Maximum Operating Pressure	35 bar	Materials of Construction	Steel nickel plated
Minimum Operating Temperature	-20 °C	Version	Single Shut-Off
Valve Included	Yes
Hose I.D.	na	Type	Coupling
Connection Type	Female Thread - parallel	Connection Thread Size (inch)	3/8
