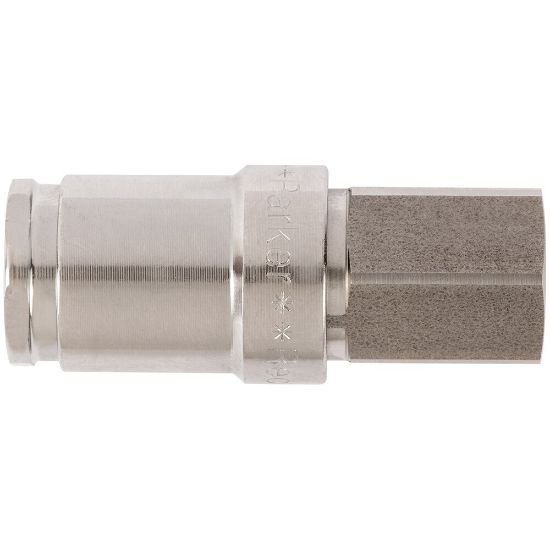

Quick Coupling with ISO 6150 C Profile, Series 303 - 303KBIW10EVX

Name: Quick Coupling with ISO 6150 C Profile, Series 303 - 303KBIW10EVX
SKU: 303KBIW10EVX
Availability: OutOfStock

Quick coupling system with nominal diameter 3 for pneumatic and fluid handling applications up to 35 bar. Coupling system with ISO 6150 C profile. Available made of stainless steel.

Availability:

Backordered

SKU: 303KBIW10EVX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Minimum Operating Temperature	-15 °C
Maximum Operating Pressure	35 bar	Valve Included	Yes
Seal Material	FKM	Flow Rate	160 L/min
Maximum Operating Temperature	200 °C	Length	43 mm
Outside Diameter	18 mm	Hex Size	14 mm
Version	Double Shut-Off	Materials of Construction	AISI 316 L
Diameter	3 nom
Type	Coupling	Hose I.D.	na
Connection Thread Size (inch)	1/8	Connection Type	Female Thread - parallel
