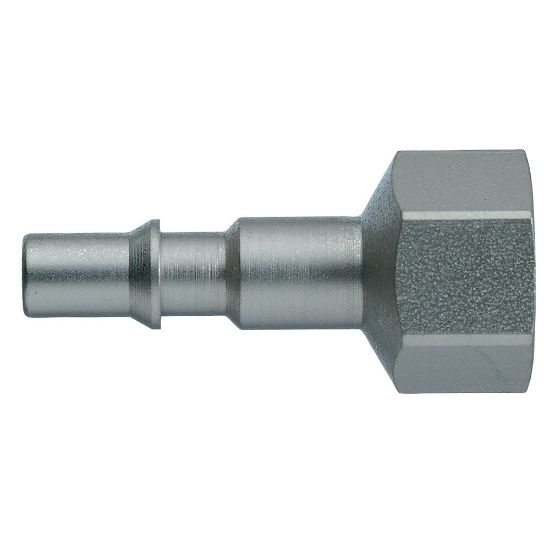

Quick Coupling with ISO 6150 C Profile, Series 18 - 18SFIW17SXN

Name: Quick Coupling with ISO 6150 C Profile, Series 18 - 18SFIW17SXN
SKU: 18SFIW17SXN
Availability: OutOfStock

Quick coupling system with nominal diameter 5.5 for pneumatic and fluid handling applications up to 35 bar. Coupling system with ISO 6150 C profile. Available made of brass/steel.

Availability:

Backordered

SKU: 18SFIW17SXN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-20 °C	Seal Material	na
Maximum Operating Pressure	35 bar	Version	Single Shut-Off
Valve Included	No	Hex Size	19 mm
Diameter	5,5 nom	Outside Diameter	na
Materials of Construction	Steel nickel plated	Flow Rate	970 L/min
Type	Plug	Hose I.D.	na
Connection Thread Size (inch)	3/8	Connection Type	Female Thread - parallel
Length (mm)	44
