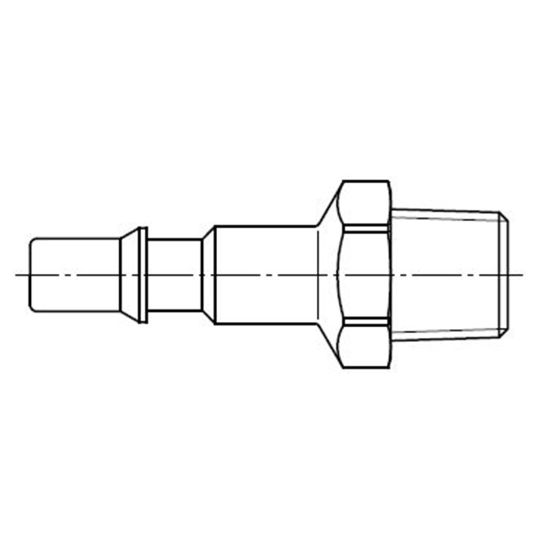

Quick Coupling with ISO 6150 C Profile, Series 18 - 18SFAK13SXN

Name: Quick Coupling with ISO 6150 C Profile, Series 18 - 18SFAK13SXN
SKU: 18SFAK13SXN
Availability: OutOfStock

Quick coupling system with nominal diameter 5.5 for pneumatic and fluid handling applications up to 35 bar. Coupling system with ISO 6150 C profile. Available made of brass/steel.

Availability:

Backordered

SKU: 18SFAK13SXN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-20 °C	Maximum Operating Pressure	35 bar
Version	Single Shut-Off	Valve Included	No
Hex Size	na mm	Diameter	5,5 nom
Materials of Construction	Brass nickel plated	Flow Rate	970 L/min
Seal Material	No	Outside Diameter	na mm
Type	Plug	Hose I.D.	na
Connection Thread Size (inch)	1/4	Connection Type	Male Thread - tapered
Length (mm)	na
