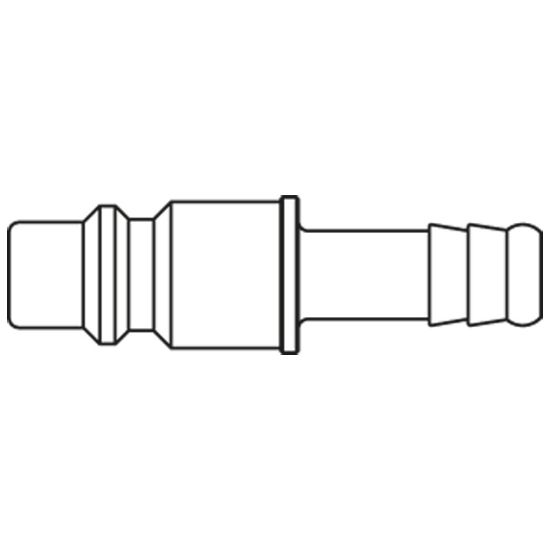

Quick Coupling with ISO 6150 B Profile, Series 30 - 30SFTF09SXN

Name: Quick Coupling with ISO 6150 B Profile, Series 30 - 30SFTF09SXN
SKU: 30SFTF09SXN
Availability: OutOfStock

Quick coupling system with nominal diameter 8.5 for pneumatic and fluid handling applications up to 35 bar. Coupling system with ISO 6150 B profile and according to US MIL-SPEC 4109. Available made of brass/steel.

Availability:

Backordered

SKU: 30SFTF09SXN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Division	Low Pressure Connectors Europe Division
Seal Material	n/a	Maximum Operating Pressure	35 bar
Version	Single Shut-Off	Hex Size	n/a
Valve Included	No	Outside Diameter	16 mm
Length	55 mm	Flow Rate	1,050 (Air), 14 (Water) L/min
Maximum Operating Temperature	n/a depends of the associated coupler °C	Diameter	8 nom
Minimum Operating Temperature	n/a depends of the associated coupler °C
Type	Plug	Connection Type	Hose Barb
Connection Thread Size (inch)	na	Hose I.D.	9
Material	Steel nickel plated
