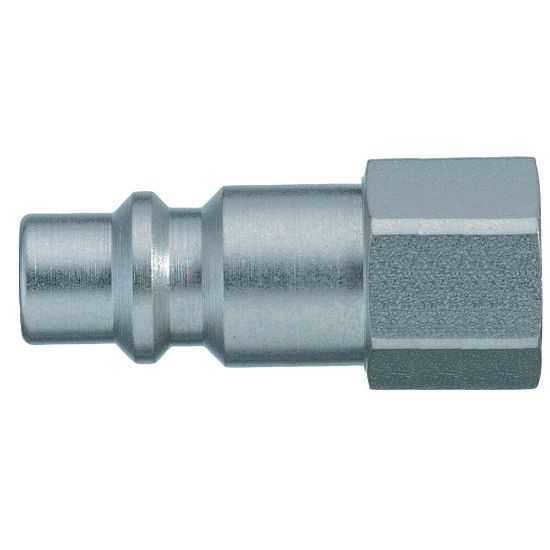

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling with ISO 6150 B Profile, Series 30 - 30SFIW21SXN

Name: Quick Coupling with ISO 6150 B Profile, Series 30 - 30SFIW21SXN
SKU: 30SFIW21SXN
Availability: OutOfStock

Quick coupling system with nominal diameter 8.5 for pneumatic and fluid handling applications up to 35 bar. Coupling system with ISO 6150 B profile and according to US MIL-SPEC 4109. Available made of brass/steel.

Availability:

Backordered

SKU: 30SFIW21SXN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	100 °C
Weight	0.103 kg	Minimum Operating Temperature	-20 °C
Seal Material	na	Maximum Operating Pressure	35 bar
Version	Single Shut-Off	Valve Included	No
Length	43 mm	Outside Diameter	na
Hex Size	24 mm	Assembly Time	n/a Transair Piping Designer
Diameter	8,5 nom	Flow Rate	890 L/min
Pipe Outside Diameter	8.0 inch Transair Piping Designer
Type	Plug	Hose I.D.	na
Connection Type	Female Thread - parallel	Connection Thread Size (inch)	1/2
Material	Steel nickel plated
