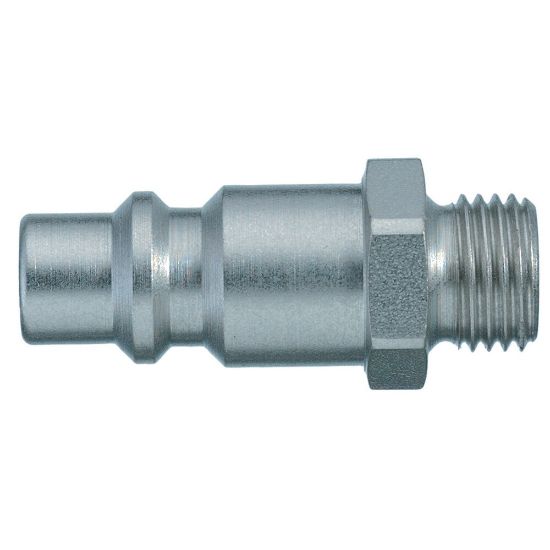

Quick Coupling with ISO 6150 B Profile, Series 30 - 30SFAW13SXN

Name: Quick Coupling with ISO 6150 B Profile, Series 30 - 30SFAW13SXN
SKU: 30SFAW13SXN
Availability: OutOfStock

Quick coupling system with nominal diameter 8.5 for pneumatic and fluid handling applications up to 35 bar. Coupling system with ISO 6150 B profile and according to US MIL-SPEC 4109. Available made of brass/steel.

Availability:

Backordered

SKU: 30SFAW13SXN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Division	Low Pressure Connectors Europe Division
Maximum Operating Temperature	100 °C	Minimum Operating Temperature	-20 °C
Seal Material	na	Maximum Operating Pressure	35 bar
Version	Single Shut-Off	Valve Included	No
Hex Size	17 mm	Outside Diameter	na
Length	42 mm	Diameter	8,5 nom
Flow Rate	890 L/min
Type	Plug	Hose I.D.	na
Connection Thread Size (inch)	1/4	Connection Type	Male Thread - parallel
Material	Steel nickel plated
