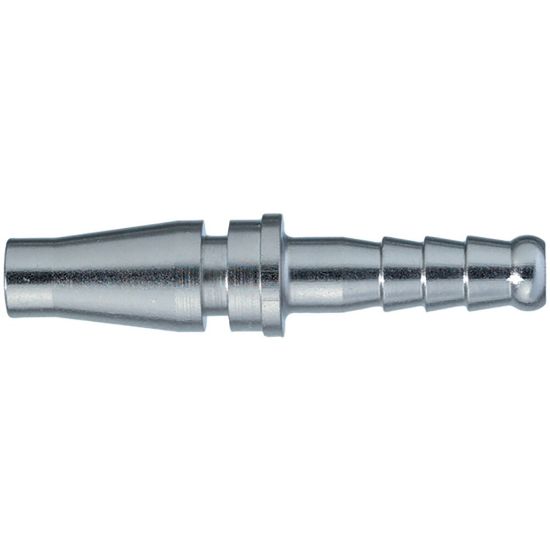

Quick Coupling with English Profile, Series 17 - 17SFTF10SXN

Name: Quick Coupling with English Profile, Series 17 - 17SFTF10SXN
SKU: 17SFTF10SXN
Availability: OutOfStock

Quick coupling system with nominal diameter 5 for pneumatic and fluid handling applications up to 35 bar. Coupling system with English profile. Available made of brass/steel.

Availability:

Backordered

SKU: 17SFTF10SXN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-20 °C	Seal Material	na
Maximum Operating Pressure	35 bar	Version	Single Shut-Off
Hex Size	na	Valve Included	No
Length	52 mm	Materials of Construction	Steel nickel plated
Outside Diameter	12 mm	Diameter	5 nom
Flow Rate	870 L/min
Type	Plug	Connection Type	Hose Barb
Connection Thread Size (inch)	na	Hose I.D. (mm)	10
