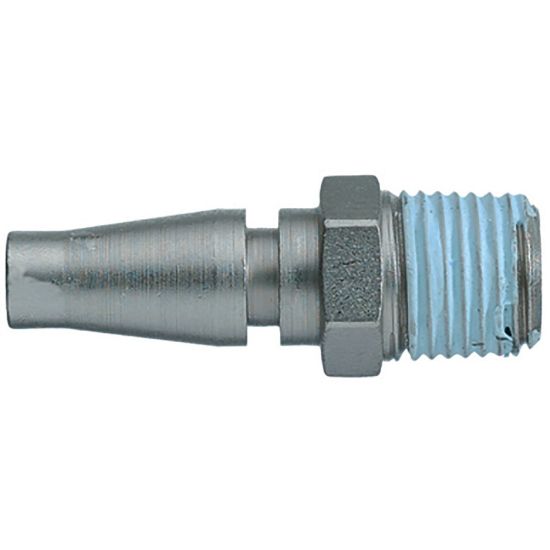

Quick Coupling with English Profile, Series 17 - 17SFAK13SXN

Name: Quick Coupling with English Profile, Series 17 - 17SFAK13SXN
SKU: 17SFAK13SXN
Availability: OutOfStock

Quick coupling system with nominal diameter 5 for pneumatic and fluid handling applications up to 35 bar. Coupling system with English profile. Available made of brass/steel.

Availability:

Backordered

SKU: 17SFAK13SXN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-20 °C	Seal Material	na
Maximum Operating Pressure	35 bar	Version	Single Shut-Off
Valve Included	No	Hex Size	14 mm
Outside Diameter	na	Materials of Construction	Steel nickel plated
Diameter	5 nom	Flow Rate	870 L/min
Length	42 mm
Type	Plug	Connection Thread Size (inch)	1/4
Connection Type	Male Thread - tapered	Hose I.D. (mm)	na
