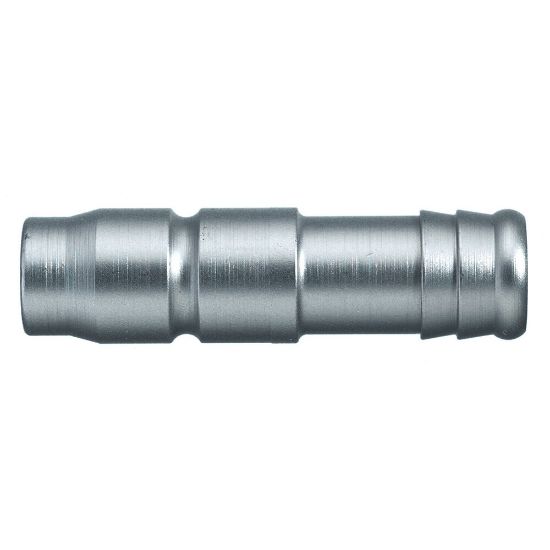

Quick Coupling with Atlas Copco Profile, Series 34 - 34SFTF13SXN

Name: Quick Coupling with Atlas Copco Profile, Series 34 - 34SFTF13SXN
SKU: 34SFTF13SXN
Availability: OutOfStock

Quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with Atlas Copco profile. Available made of brass/steel.

Availability:

Backordered

SKU: 34SFTF13SXN

Qty:

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-20 °C	Materials of Construction	Steel nickel plated
Seal Material	na	Version	Single Shut-Off
Outside Diameter	15 mm	Division	Low Pressure Connectors Europe Division
Maximum Operating Pressure	35 bar	Length	55 mm
Valve Included	No	Diameter	10 nom
Hex Size	na	Maximum Operating Temperature	100 °C
Flow Rate	2550 L/min
Hose I.D.	13	Type	Plug
Connection Thread Size (inch)	na	Connection Type	Hose Barb
