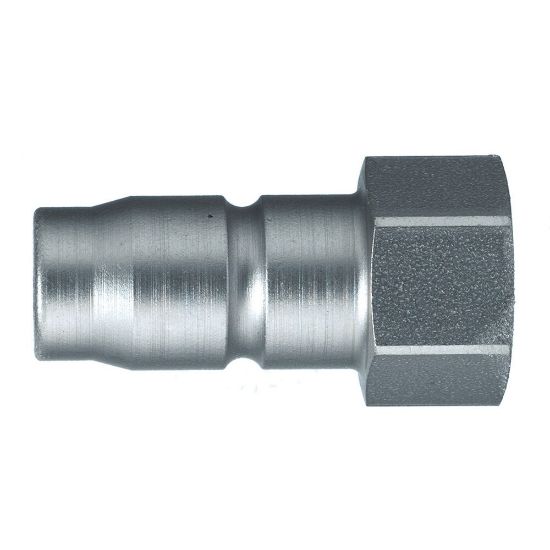

Quick Coupling with Atlas Copco Profile, Series 34 - 34SFIW21SXN

Name: Quick Coupling with Atlas Copco Profile, Series 34 - 34SFIW21SXN
SKU: 34SFIW21SXN
Availability: OutOfStock

Quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with Atlas Copco profile. Available made of brass/steel.

Availability:

Backordered

SKU: 34SFIW21SXN

Qty:

Products specifications

Attribute name	Attribute value
Length	44 mm	Materials of Construction	Steel nickel plated
Seal Material	na	Maximum Operating Temperature	100 °C
Diameter	10 nom	Division	Low Pressure Connectors Europe Division
Maximum Operating Pressure	35 bar	Valve Included	No
Flow Rate	2550 L/min	Outside Diameter	na
Minimum Operating Temperature	-20 °C	Version	Single Shut-Off
Hex Size	24 mm
Type	Plug	Connection Type	Female Thread - parallel
Connection Thread Size (inch)	1/2	Hose I.D.	na
