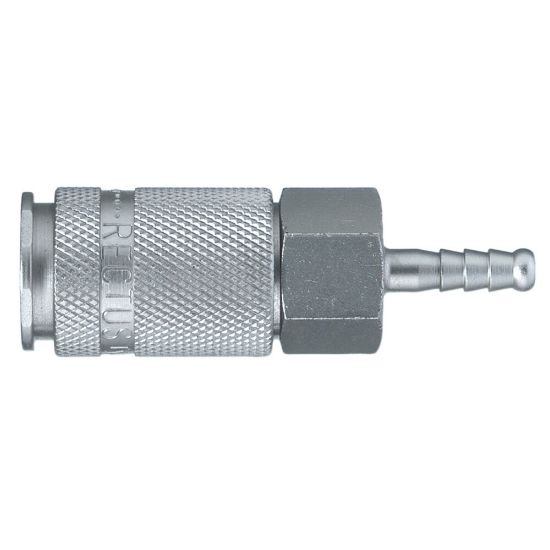

Quick Coupling with Atlas Copco Profile, Series 34 - 34KATF16SPN

Name: Quick Coupling with Atlas Copco Profile, Series 34 - 34KATF16SPN
SKU: 34KATF16SPN
Availability: OutOfStock

Quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with Atlas Copco profile. Available made of brass/steel.

Availability:

Backordered

SKU: 34KATF16SPN

Qty:

Products specifications

Attribute name	Attribute value
Length	84 mm	Version	Single Shut-Off
Materials of Construction	Brass/Steel nickel plated	Valve Included	Yes
Maximum Operating Pressure	35 bar	Seal Material	NBR
Flow Rate	2550 L/min	Division	Low Pressure Connectors Europe Division
Diameter	10 nom	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-20 °C	Outside Diameter	28 mm
Hex Size	24 mm
Connection Thread Size (inch)	na	Hose I.D.	16
Connection Type	Hose Barb	Type	Coupling
