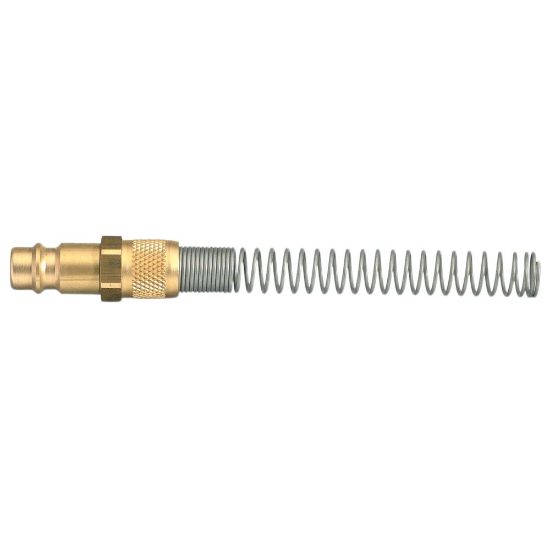

Quick Coupling, European Profile, ND 7.2 (Series 26) - 26SFKK08MXX

Name: Quick Coupling, European Profile, ND 7.2 (Series 26) - 26SFKK08MXX
SKU: 26SFKK08MXX
Availability: OutOfStock

Quick coupling system with nominal diameter 7.2 for pneumatic applications up to 35 bar. Available in brass sleeve or polymer.

Availability:

Backordered

SKU: 26SFKK08MXX

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.029 kg	Division	Low Pressure Connectors Europe Division
Quantity per Box	10	Division	Low Pressure Connectors Europe Division
Body Material	BRASS	Sleeve Material	BRASS
Specifications Met	RoHS	For Fluid Type	Compressed Air
Shape	Straight	Seal Material	Without seal
Technology	Fluid & Gas Handling	Industry	General Industrial
Outside Diameter	12 mm	Region of Origin	Germany
Connection Type	Tube with Spring Guard	Application	Trucks & Trailers
Product Style	Quick-Connect	Maximum Operating Pressure	up to 35 bar
Brand	Rectus	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Interchange Type	European Profile
Plating Type	Without Surface Treatment	Function	Straight-Through
Valve Type	Without Valve	Coupling Half	Plug
Maximum Operating Temperature	up to 212 °F	Connection Size	6x8 mm
Product Series	Series 26	Diameter	7.2 mm (nominal)
Flow Rate	1070 L/min (air)	Compatible Fitting	Series 26 Coupler
Minimum Operating Temperature	down to -4 °F	Length	127 mm
Materials of Construction	Brass	Version	Single Shut-Off
Connection Type	Plastic Hose Connection with Spring Guard	Coupling Half	Plug
Connection Size	6x8 mm
