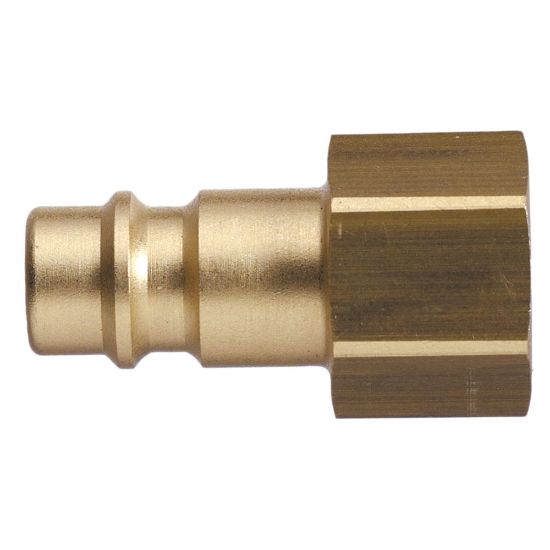

Quick Coupling, European Profile, ND 7.2 (Series 26) - 26SFIM14MXX

Name: Quick Coupling, European Profile, ND 7.2 (Series 26) - 26SFIM14MXX
SKU: 26SFIM14MXX
Availability: OutOfStock

Quick coupling system with nominal diameter 7.2 for pneumatic applications up to 35 bar. Available in brass sleeve or polymer.

Availability:

Backordered

SKU: 26SFIM14MXX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	10
Division	Low Pressure Connectors Europe Division	Application	Industrial Machinery
Body Material	BRASS	Sleeve Material	BRASS
Specifications Met	RoHS	Brand	Parker
Shape	Straight	Industry	Transportation
Seal Material	Without seal	For Fluid Type	Air
Technology	Fluid & Gas Handling	Hex Size	17 mm
Length	33 mm	Region of Origin	Germany
Product Style	Quick-Connect	Maximum Operating Pressure	up to 35 bar
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Interchange Type	European Profile	Connection Type	Metric DIN 13
Plating Type	Without Surface Treatment	Function	Straight-Through
Valve Type	Without Valve	Coupling Half	Plug
Connection Size	M14x1.5	Maximum Operating Temperature	up to 100 °C
Weight	0.0227 kg	Product Series	Series 26
Diameter	7.2 mm (nominal)	Flow Rate	1070 L/min (air)
Compatible Fitting	Series 26 Coupler	Minimum Operating Temperature	down to -20 °C
Connection Type	Female, Metric	Materials of Construction	Brass
Version	Single Shut-Off	Coupling Half	Plug
Connection Size	14x1.5 mm
