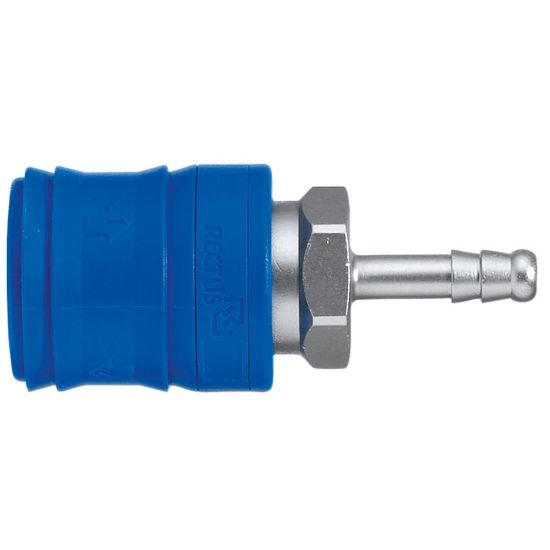

Quick Coupling, European Profile, ND 7.2 (Series 26) - 26KETF10MPN

Name: Quick Coupling, European Profile, ND 7.2 (Series 26) - 26KETF10MPN
SKU: 26KETF10MPN
Availability: OutOfStock

Quick coupling system with nominal diameter 7.2 for pneumatic applications up to 35 bar. Available in brass sleeve or polymer.

Availability:

Backordered

SKU: 26KETF10MPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Sleeve Material	BRASS	Maximum Operating Temperature	60 °C
Seal Material	NBR	Shape	Straight
Minimum Operating Temperature	-4 °F	Industry	Transportation
Coupling Half	Coupler	For Fluid Type	Air
Technology	Pneumatics	Hex Size	22 mm
Region of Origin	Germany	Length	71 mm
Outside Diameter	31 mm	Connection Type	Hose Barb
Specifications Met	ATEX	Product Style	Quick-Connect
Weight	0.095 kg	Compatible Fitting	Series 25 Plug
Maximum Operating Pressure	up to 12 bar	Brand	Rectus
Function	Self-Venting System	Plating Type	Nickel-plated
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Connection Size	10 mm	Interchange Type	European Profile
Application	Energy Management	Valve Type	Standard Valve
Diameter	7.4 mm (nominal)	Product Series	Series 26
Flow Rate	830 L/min (air)
Connection Type	Hose Barb	Materials of Construction	Brass
Version	Self-Venting System	Coupling Half	Coupler
Connection Size	10 mm
