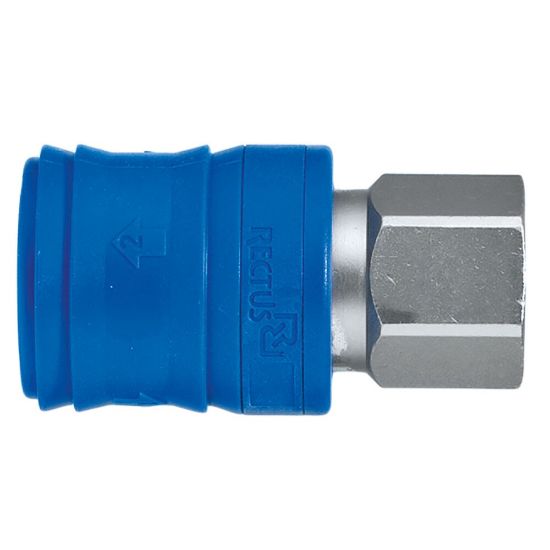

Quick Coupling, European Profile, ND 7.2 (Series 26) - 26KEIW21MPN

Name: Quick Coupling, European Profile, ND 7.2 (Series 26) - 26KEIW21MPN
SKU: 26KEIW21MPN
Availability: OutOfStock

Quick coupling system with nominal diameter 7.2 for pneumatic applications up to 35 bar. Available in brass sleeve or polymer.

Availability:

Backordered

SKU: 26KEIW21MPN

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.11 kg	Division	Low Pressure Connectors Europe Division
Quantity per Box	5	Division	Low Pressure Connectors Europe Division
Body Material	BRASS	Sleeve Material	BRASS
Maximum Operating Temperature	60 °C	Seal Material	NBR
Specifications Met	RoHS	For Fluid Type	Compressed Air
Brand	Parker	Shape	Straight
Minimum Operating Temperature	-4 °F	Coupling Half	Coupler
Technology	Pneumatics	Length	60 mm
Application	Electronics	Hex Size	24 mm
Region of Origin	Germany	Outside Diameter	31 mm
Connection Type	Female	Product Style	Quick-Connect
Compatible Fitting	Series 25 Plug	Maximum Operating Pressure	up to 174 psi
Function	Self-Venting System	Plating Type	Nickel-plated
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Connection Size	G 1/2	Interchange Type	European Profile
Industry	Electronics	Valve Type	Standard Valve
Diameter	7.4 mm (nominal)	Product Series	Series 26
Flow Rate	830 L/min (air)
Materials of Construction	Brass	Version	Self-Venting System
Coupling Half	Coupler	Connection Size	1/2"
Connection Type	Female, BSPP
