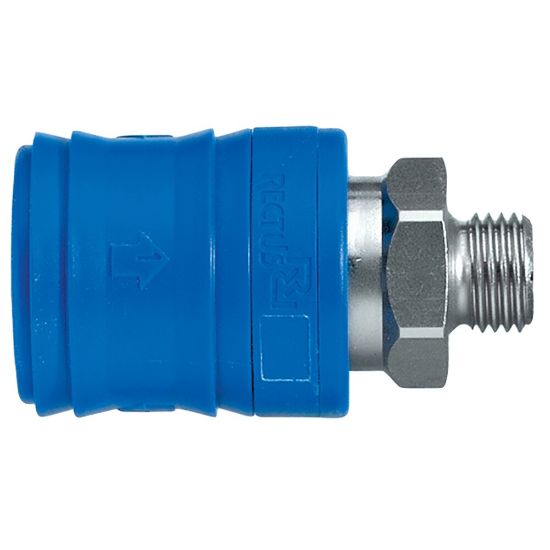

Quick Coupling, European Profile, ND 7.2 (Series 26) - 26KEAW21MPN

Name: Quick Coupling, European Profile, ND 7.2 (Series 26) - 26KEAW21MPN
SKU: 26KEAW21MPN
Availability: OutOfStock

Quick coupling system with nominal diameter 7.2 for pneumatic applications up to 35 bar. Available in brass sleeve or polymer.

Availability:

Backordered

SKU: 26KEAW21MPN

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.11 kg	Division	Low Pressure Connectors Europe Division
Quantity per Box	5	Division	Low Pressure Connectors Europe Division
Body Material	BRASS	Sleeve Material	BRASS
Minimum Operating Temperature	-20 °C	Seal Material	NBR
Brand	Parker	Shape	Straight
Coupling Half	Coupler	For Fluid Type	Air
Technology	Pneumatics	Maximum Operating Temperature	140 °F
Application	Electronics	Length	58 mm
Hex Size	24 mm	Region of Origin	Germany
Outside Diameter	31 mm	Specifications Met	ISO 4414
Product Style	Quick-Connect	Compatible Fitting	Series 25 Plug
Maximum Operating Pressure	up to 12 bar	Function	Self-Venting System
Plating Type	Nickel-plated	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Connection Size	G 1/2
Interchange Type	European Profile	Connection Type	BSPP ISO 228 Parallel
Industry	Electronics	Valve Type	Standard Valve
Diameter	7.4 mm (nominal)	Product Series	Series 26
Flow Rate	830 L/min (air)
Materials of Construction	Brass	Version	Self-Venting System
Coupling Half	Coupler	Connection Size	1/2"
Connection Type	Male, BSPP
