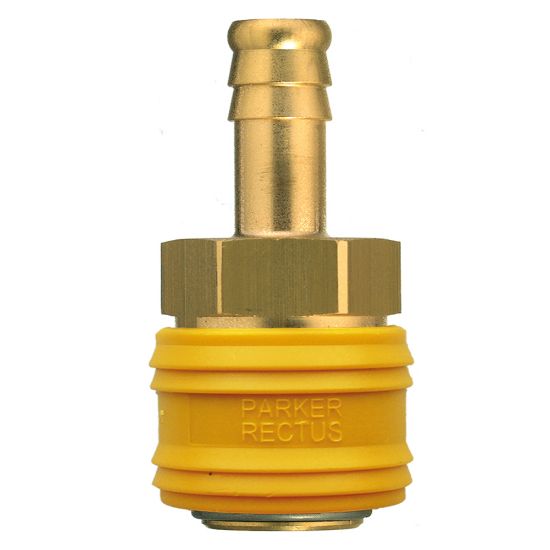

Quick Coupling, European Profile, ND 7.2 (Series 26) - 26KATF10MPXY

Name: Quick Coupling, European Profile, ND 7.2 (Series 26) - 26KATF10MPXY
SKU: 26KATF10MPXY
Availability: OutOfStock

Quick coupling system with nominal diameter 7.2 for pneumatic applications up to 35 bar. Available in brass sleeve or polymer.

Availability:

Backordered

SKU: 26KATF10MPXY

Qty:

Products specifications

Attribute name	Attribute value
Product Style	Quick-Connect	Coupling Half	Coupler
Body Material	BRASS	Plating Type	Without Surface Treatment
Region of Origin	Germany	Function	Single Shut-Off
Application	Mobile & Defence	Outside Diameter	25 mm
Seal Material	NBR	Connection Size	10 mm
Compatible Fitting	Series 26 Plug	Weight	0.075 kg
Product Series	Series 26	Valve Type	Standard Valve
Hex Size	21 mm	Division	Low Pressure Connectors Europe Division
Technology	Fluid & Gas Handling	Connection Type	Hose Barb
Diameter	7.2 mm (nominal)	Interchange Type	European Profile
Maximum Operating Temperature	100 °C	For Fluid Type	Compressed Air
Minimum Operating Temperature	-4 °F	Length	58 mm
Shape	Straight	Quantity per Box	10
Industry	Healthcare & Life Sciences	Flow Rate	1070 L/min (air)
Specifications Met	RoHS	Product Type	Pneumatic Quick Couplings
Maximum Operating Pressure	up to 35 bar	Division	Low Pressure Connectors Europe Division
Operation Type	Sleeve	Brand	Parker
Sleeve Material	Polymer
Materials of Construction	Brass/Polymer	Coupling Half	Coupler
Connection Type	Hose Barb	Connection Size	10 mm
Version	Single Shut-Off
