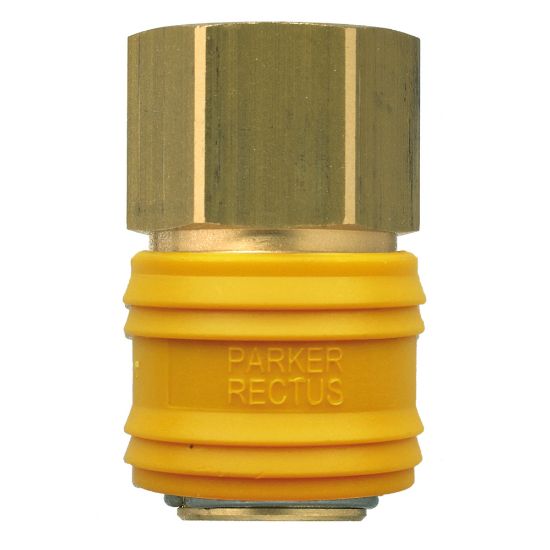

Quick Coupling, European Profile, ND 7.2 (Series 26) - 26KAIW21MPXY

Name: Quick Coupling, European Profile, ND 7.2 (Series 26) - 26KAIW21MPXY
SKU: 26KAIW21MPXY
Availability: OutOfStock

Quick coupling system with nominal diameter 7.2 for pneumatic applications up to 35 bar. Available in brass sleeve or polymer.

Availability:

Backordered

SKU: 26KAIW21MPXY

Qty:

Products specifications

Attribute name	Attribute value
Diameter	7.2 mm (nominal)	Valve Type	Standard Valve
Technology	Fluid & Gas Handling	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-4 °F	Division	Low Pressure Connectors Europe Division
Seal Material	NBR	Interchange Type	European Profile
Quantity per Box	10	For Fluid Type	Compressed Air
Shape	Straight	Weight	0.092 kg
Sleeve Material	Polymer	Flow Rate	1070 L/min (air)
Product Type	Pneumatic Quick Couplings	Length	44 mm
Division	Low Pressure Connectors Europe Division	Industry	Transportation
Operation Type	Sleeve	Brand	Parker
Specifications Met	ATEX	Coupling Half	Coupler
Hex Size	24 mm	Plating Type	Without Surface Treatment
Region of Origin	Germany	Function	Single Shut-Off
Connection Size	G 1/2	Outside Diameter	25 mm
Application	Air & Gas Compressor	Maximum Operating Pressure	up to 507 psi
Connection Type	Female	Compatible Fitting	Series 26 Plug
Body Material	BRASS	Product Style	Quick-Connect
Product Series	Series 26
Connection Size	1/2"	Materials of Construction	Brass/Polymer
Coupling Half	Coupler	Connection Type	Female, BSPP
Version	Single Shut-Off
