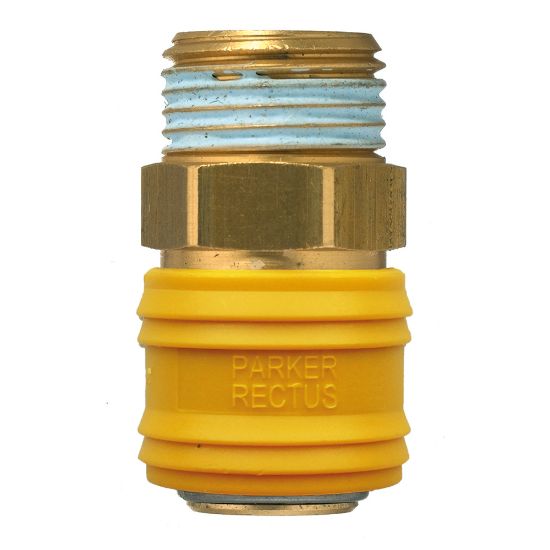

Quick Coupling, European Profile, ND 7.2 (Series 26) - 26KAAW17MPXY

Name: Quick Coupling, European Profile, ND 7.2 (Series 26) - 26KAAW17MPXY
SKU: 26KAAW17MPXY
Availability: OutOfStock

Quick coupling system with nominal diameter 7.2 for pneumatic applications up to 35 bar. Available in brass sleeve or polymer.

Availability:

Backordered

SKU: 26KAAW17MPXY

Qty:

Products specifications

Attribute name	Attribute value
Connection Type	Male	Flow Rate	1070 L/min (air)
Plating Type	Without Surface Treatment	Division	Low Pressure Connectors Europe Division
Operation Type	Sleeve	Specifications Met	ATEX
Product Type	Pneumatic Quick Couplings	Hex Size	22 mm
Sleeve Material	BRASS	Product Style	Quick-Connect
Body Material	BRASS	Function	Single Shut-Off
Coupling Half	Coupler	Region of Origin	Germany
Maximum Operating Pressure	up to 507 psi	Shape	Straight
Interchange Type	European Profile	For Fluid Type	Compressed Air
Seal Material	NBR	Product Series	Series 26
Application	Safety & Rescue	Outside Diameter	25 mm
Compatible Fitting	Series 26 Plug	Weight	0.075 kg
Industry	General Industrial	Connection Size	G 3/8
Quantity per Box	10	Length	41 mm
Diameter	7.2 mm (nominal)	Valve Type	Standard Valve
Maximum Operating Temperature	100 °C	Brand	Rectus
Division	Low Pressure Connectors Europe Division	Technology	Fluid & Gas Handling
Minimum Operating Temperature	-4 °F
Coupling Half	Coupler	Materials of Construction	Brass/Polymer
Version	Single Shut-Off	Connection Type	Male, BSPP
Connection Size	3/8"
