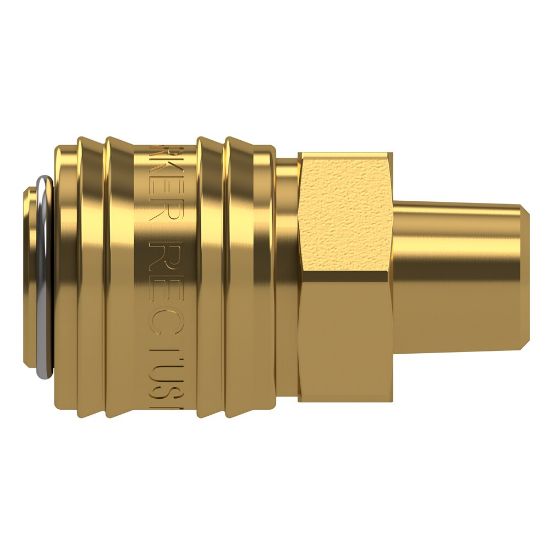

Quick Coupling, European Profile, ND 7.2 (Series 26) - 26KAAK17MPX

Name: Quick Coupling, European Profile, ND 7.2 (Series 26) - 26KAAK17MPX
SKU: 26KAAK17MPX
Availability: OutOfStock

Quick coupling system with nominal diameter 7.2 for pneumatic applications up to 35 bar. Available in brass sleeve or polymer.

Availability:

Backordered

SKU: 26KAAK17MPX

Qty:

Products specifications

Attribute name	Attribute value
Connection Size	R 3/8	Flow Rate	1070 L/min (air)
Division	Low Pressure Connectors Europe Division	Product Type	Pneumatic Quick Couplings
For Fluid Type	Air	Weight	0.0797 kg
Specifications Met	RoHS	Operation Type	Sleeve
Body Material	BRASS	Product Style	Quick-Connect
Application	Mobile & Defence	Function	Single Shut-Off
Coupling Half	Coupler	Valve Included	Yes
Plating Type	Without Surface Treatment	Region of Origin	Germany
Maximum Operating Pressure	up to 507 psi	Interchange Type	European Profile
Seal Material	NBR	Hex Size	22 mm
Product Series	Series 26	Outside Diameter	25 mm
Compatible Fitting	Series 26 Plug	Industry	General Industrial
Connection Type	BSPT DIN 2999	Minimum Operating Temperature	-4 °F
Length	41 mm	Quantity per Box	10
Division	Low Pressure Connectors Europe Division	Technology	Fluid & Gas Handling
Valve Type	Standard Valve	Diameter	7.2 mm (nominal)
Maximum Operating Temperature	212 °F	Brand	Rectus
Coupling Half	Coupler	Connection Type	Male, BSPT
Version	Single Shut-Off	Connection Size	3/8"
Materials of Construction	Brass
