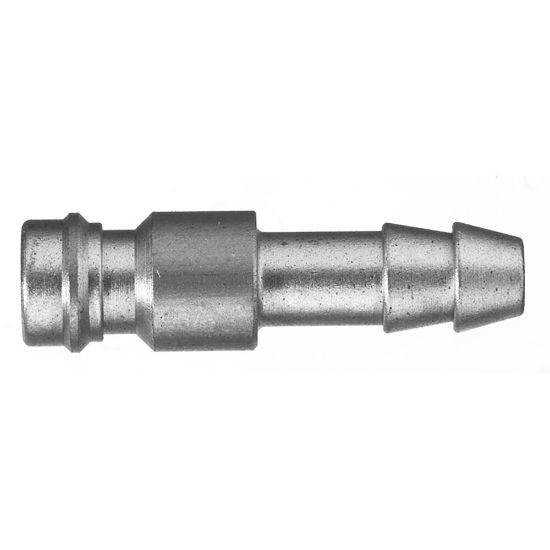

Quick Coupling, European profile, ND 5 (Series 21) - 21SSTF10MXN

Name: Quick Coupling, European profile, ND 5 (Series 21) - 21SSTF10MXN
SKU: 21SSTF10MXN
Availability: OutOfStock

Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.

Availability:

Backordered

SKU: 21SSTF10MXN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Maximum Operating Temperature	100 °C	Operation Type	n/a
Weight	0.01 kg	Specifications Met	RoHS
For Fluid Type	Compressed Air	Seal Material	Without seal
Hex Size	n/a	Valve Included	No
Technology	Pneumatics	Industry	Healthcare & Life Sciences
Outside Diameter	12 mm	Region of Origin	Germany
Connection Type	Hose Barb	Product Style	Quick-Connect
Maximum Operating Pressure	up to 35 bar	Brand	Rectus
Plating Type	Nickel-plated	Product Type	Pneumatic Quick Couplings
Connection Size	10 mm	Interchange Type	European Profile
Valve Type	Without Valve	Coupling Half	Plug
Minimum Operating Temperature	down to -40 °F	Application	Safety & Rescue
Diameter	5 mm (nominal)	Product Series	Series 21
Flow Rate	550 L/min (air)	Function	Safety (straight-through)
Compatible Fitting	Series 21 Coupler
Connection Type	Hose Barb	Materials of Construction	Brass, Nickel-plated
Version	Single Shut-Off	Connection Size	10 mm
Coupling Half	Plug - Safety
