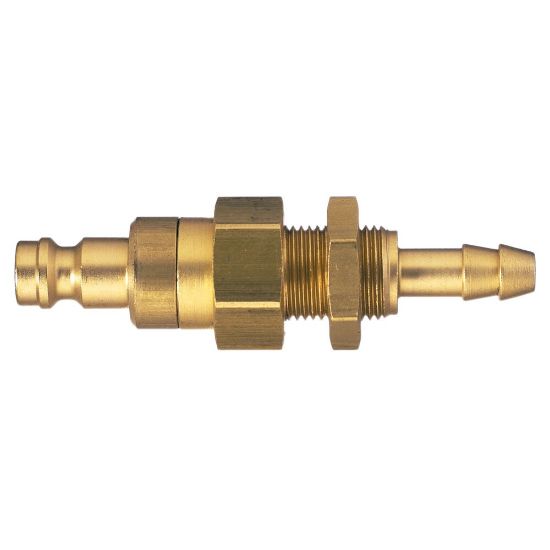

Quick Coupling, European profile, ND 5 (Series 21) - 21SLTS05MPX

Name: Quick Coupling, European profile, ND 5 (Series 21) - 21SLTS05MPX
SKU: 21SLTS05MPX
Availability: OutOfStock

Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.

Availability:

Backordered

SKU: 21SLTS05MPX

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.044 kg	Division	Low Pressure Connectors Europe Division
Quantity per Box	1	Division	Low Pressure Connectors Europe Division
Body Material	BRASS	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-20 °C	Seal Material	NBR
Operation Type	n/a	Brand	Parker
Industry	Transportation	Valve Included	Yes
Technology	Pneumatics	Application	Electronics
Hex Size	14 mm	Region of Origin	Germany
Specifications Met	ATEX	Product Style	Quick-Connect
Product Type	Pneumatic Quick Couplings	Interchange Type	European Profile
Valve Type	Standard Valve	Plating Type	Without Surface Treatment
Connection Size	5 mm	For Fluid Type	Chemical Fluids
Connection Type	Hose Barb Panel Mount	Coupling Half	Plug
Diameter	5 mm (nominal)	Product Series	Series 21
Flow Rate	2.7 L/min (water)	Function	Dry-Break (double shut-off)
Maximum Operating Pressure	up to 116 psi
Connection Type	Hose Barb	Materials of Construction	Brass
Connection Size	5 mm	Coupling Half	Plug
Version	Dry-Break (double shut-off)
