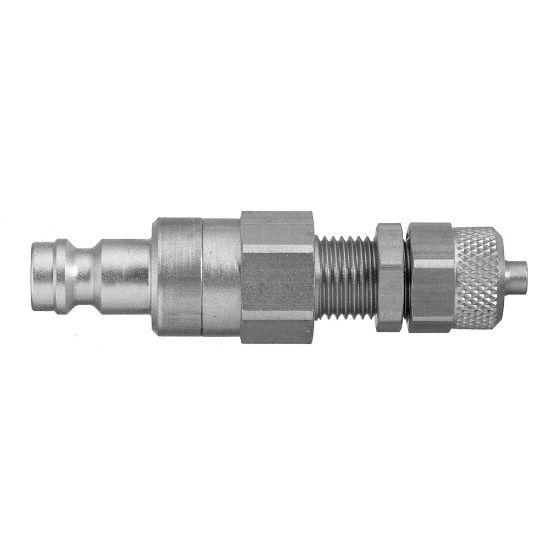

Quick Coupling, European profile, ND 5 (Series 21) - 21SLKS08MPN

Name: Quick Coupling, European profile, ND 5 (Series 21) - 21SLKS08MPN
SKU: 21SLKS08MPN
Availability: OutOfStock

Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.

Availability:

Backordered

SKU: 21SLKS08MPN

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.047 kg	Division	Low Pressure Connectors Europe Division
Quantity per Box	1	Division	Low Pressure Connectors Europe Division
Body Material	BRASS	Minimum Operating Temperature	-20 °C
Seal Material	NBR	Operation Type	n/a
Brand	Parker	Shape	Straight
Industry	Transportation	Valve Included	Yes
Maximum Operating Temperature	212 °F	Technology	Pneumatics
For Fluid Type	Gases	Hex Size	14 mm
Region of Origin	Germany	Specifications Met	ATEX
Application	Trucks & Trailers	Product Style	Quick-Connect
Plating Type	Nickel-plated	Product Type	Pneumatic Quick Couplings
Interchange Type	European Profile	Valve Type	Standard Valve
Coupling Half	Plug	Diameter	5 mm (nominal)
Product Series	Series 21	Flow Rate	2.7 L/min (water)
Connection Size	6x8 mm	Connection Type	Tube Panel mount without Spring Guard
Function	Dry-Break (double shut-off)	Maximum Operating Pressure	up to 8 bar
Compatible Fitting	Series 21 Coupler
Materials of Construction	Brass, Nickel-plated	Connection Type	Tube
Coupling Half	Plug	Connection Size	6x8 mm
Version	Dry-Break (double shut-off)
