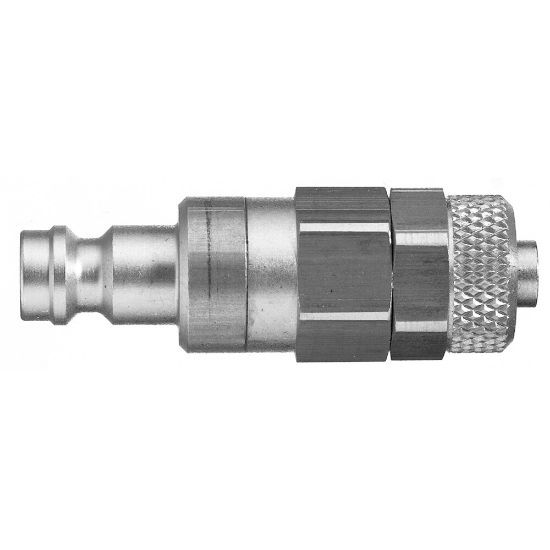

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling, European profile, ND 5 (Series 21) - 21SLKO06EVX

Name: Quick Coupling, European profile, ND 5 (Series 21) - 21SLKO06EVX
SKU: 21SLKO06EVX
Availability: OutOfStock

Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.

Availability:

Backordered

SKU: 21SLKO06EVX

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.027 kg	Division	Low Pressure Connectors Europe Division
Quantity per Box	1	Division	Low Pressure Connectors Europe Division
Maximum Operating Temperature	302 °F	Minimum Operating Temperature	-15 °C
Operation Type	n/a	Shape	Straight
Industry	Transportation	Valve Included	Yes
Technology	Pneumatics	Body Material	Stainless Steel 316L
Seal Material	FKM	For Fluid Type	Steam
Hex Size	14 mm	Region of Origin	Germany
Specifications Met	ATEX	Product Style	Quick-Connect
Brand	Rectus	Product Type	Pneumatic Quick Couplings
Interchange Type	European Profile	Application	Energy Management
Connection Type	Tube with Hose Nut, without Spring Guard	Valve Type	Standard Valve
Plating Type	Without Surface Treatment	Connection Size	4x6 mm
Coupling Half	Plug	Diameter	5 mm (nominal)
Product Series	Series 21	Flow Rate	2.7 L/min (water)
Function	Dry-Break (double shut-off)	Maximum Operating Pressure	up to 8 bar
Compatible Fitting	Series 21 Coupler
Connection Type	Tube	Connection Size	4x6 mm
Coupling Half	Plug	Version	Dry-Break (double shut-off)
Materials of Construction	Stainless Steel 316L
