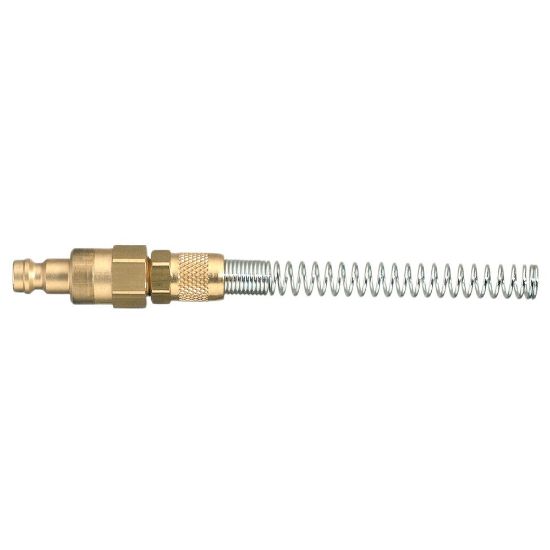

Quick Coupling, European profile, ND 5 (Series 21) - 21SLKK06MPX

Name: Quick Coupling, European profile, ND 5 (Series 21) - 21SLKK06MPX
SKU: 21SLKK06MPX
Availability: OutOfStock

Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.

Availability:

Backordered

SKU: 21SLKK06MPX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Maximum Operating Temperature	100 °C	Weight	0.039 kg
Minimum Operating Temperature	-20 °C	Seal Material	NBR
Operation Type	n/a	Brand	Parker
Industry	Transportation	Valve Included	Yes
Technology	Pneumatics	Hex Size	14 mm
Region of Origin	Germany	Connection Type	Tube with Spring Guard
Specifications Met	ATEX	Application	Trucks & Trailers
Product Style	Quick-Connect	Product Type	Pneumatic Quick Couplings
Interchange Type	European Profile	Valve Type	Standard Valve
Plating Type	Without Surface Treatment	Connection Size	4x6 mm
For Fluid Type	Chemical Fluids	Coupling Half	Plug
Diameter	5 mm (nominal)	Product Series	Series 21
Flow Rate	2.7 L/min (water)	Function	Dry-Break (double shut-off)
Maximum Operating Pressure	up to 116 psi
Materials of Construction	Brass	Connection Type	Tube
Connection Size	4x6 mm	Coupling Half	Plug
Version	Dry-Break (double shut-off)
