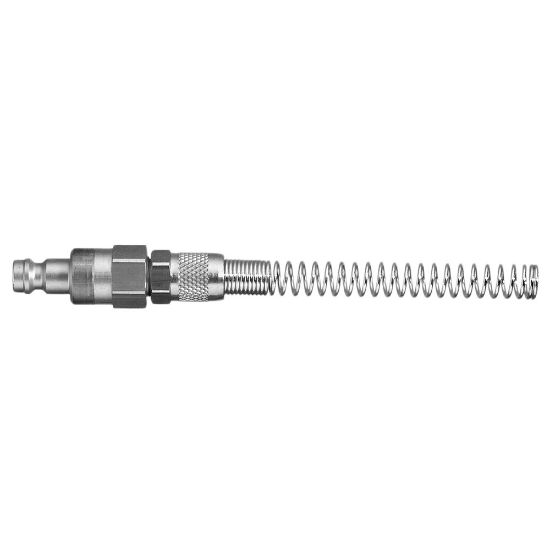

Quick Coupling, European profile, ND 5 (Series 21) - 21SLKK06MPN

Name: Quick Coupling, European profile, ND 5 (Series 21) - 21SLKK06MPN
SKU: 21SLKK06MPN
Availability: OutOfStock

Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.

Availability:

Backordered

SKU: 21SLKK06MPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Application	Industrial Machinery
Body Material	BRASS	Maximum Operating Temperature	100 °C
Weight	0.039 kg	Minimum Operating Temperature	-20 °C
Seal Material	NBR	Operation Type	n/a
Brand	Parker	Industry	Transportation
Valve Included	Yes	Technology	Fluid & Gas Handling
For Fluid Type	Gases	Hex Size	14 mm
Region of Origin	Germany	Connection Type	Tube with Spring Guard
Specifications Met	ATEX	Product Style	Quick-Connect
Plating Type	Nickel-plated	Product Type	Pneumatic Quick Couplings
Interchange Type	European Profile	Valve Type	Standard Valve
Connection Size	4x6 mm	Coupling Half	Plug
Diameter	5 mm (nominal)	Product Series	Series 21
Flow Rate	2.7 L/min (water)	Function	Dry-Break (double shut-off)
Maximum Operating Pressure	up to 116 psi
Materials of Construction	Brass, Nickel-plated	Connection Type	Tube
Connection Size	4x6 mm	Coupling Half	Plug
Version	Dry-Break (double shut-off)
