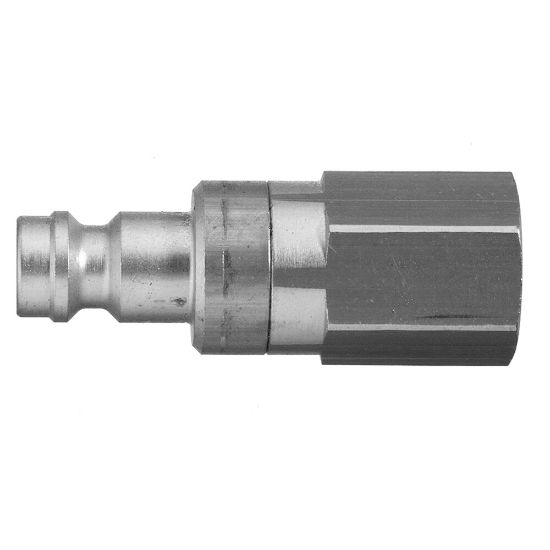

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling, European profile, ND 5 (Series 21) - 21SLIW17MPN

Name: Quick Coupling, European profile, ND 5 (Series 21) - 21SLIW17MPN
SKU: 21SLIW17MPN
Availability: OutOfStock

Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.

Availability:

Backordered

SKU: 21SLIW17MPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Maximum Operating Temperature	100 °C	Weight	0.039 kg
Minimum Operating Temperature	-20 °C	Seal Material	NBR
Operation Type	n/a	Industry	Transportation
Valve Included	Yes	Technology	Pneumatics
For Fluid Type	Gases	Hex Size	19 mm
Region of Origin	Germany	Specifications Met	ATEX
Product Style	Quick-Connect	Brand	Rectus
Plating Type	Nickel-plated	Product Type	Pneumatic Quick Couplings
Connection Size	G 3/8	Interchange Type	European Profile
Connection Type	BSPP ISO 228 Parallel	Application	Energy Management
Valve Type	Standard Valve	Coupling Half	Plug
Diameter	5 mm (nominal)	Product Series	Series 21
Flow Rate	2.7 L/min (water)	Function	Dry-Break (double shut-off)
Maximum Operating Pressure	up to 116 psi
Materials of Construction	Brass, Nickel-plated	Connection Size	3/8"
Coupling Half	Plug	Version	Dry-Break (double shut-off)
Connection Type	Female BSPP
