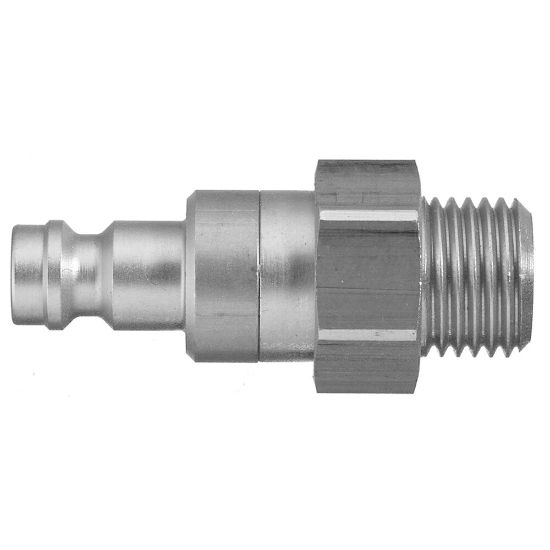

Quick Coupling, European profile, ND 5 (Series 21) - 21SLIW10EVX

Name: Quick Coupling, European profile, ND 5 (Series 21) - 21SLIW10EVX
SKU: 21SLIW10EVX
Availability: OutOfStock

Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.

Availability:

Backordered

SKU: 21SLIW10EVX

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.025 kg	Division	Low Pressure Connectors Europe Division
Quantity per Box	1	Division	Low Pressure Connectors Europe Division
Application	Industrial Machinery	Maximum Operating Temperature	302 °F
Operation Type	n/a	Specifications Met	RoHS
Brand	Parker	Shape	Straight
Valve Included	Yes	For Fluid Type	Water
Technology	Fluid & Gas Handling	Minimum Operating Temperature	5 °F
Body Material	Stainless Steel 316L	Seal Material	FKM
Industry	General Industrial	Hex Size	14 mm
Region of Origin	Germany	Product Style	Quick-Connect
Product Type	Pneumatic Quick Couplings	Interchange Type	European Profile
Connection Type	BSPP ISO 228 Parallel	Valve Type	Standard Valve
Plating Type	Without Surface Treatment	Connection Size	G 1/8
Coupling Half	Plug	Diameter	5 mm (nominal)
Product Series	Series 21	Flow Rate	2.7 L/min (water)
Function	Dry-Break (double shut-off)	Maximum Operating Pressure	up to 8 bar
Compatible Fitting	Series 21 Coupler
Connection Size	1/8"	Coupling Half	Plug
Version	Dry-Break (double shut-off)	Connection Type	Female BSPP
Materials of Construction	Stainless Steel 316L
