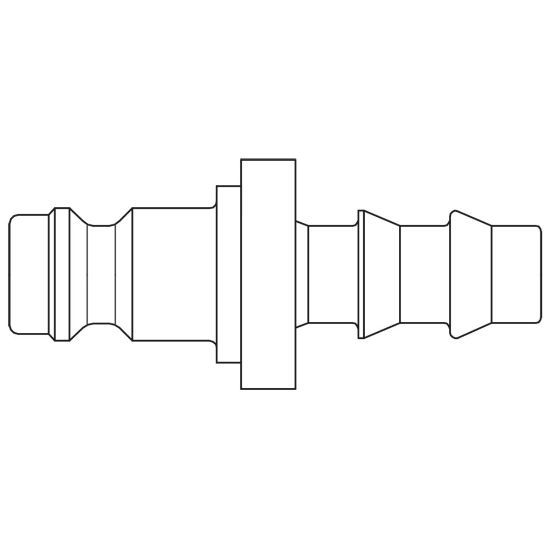

Quick Coupling, European profile, ND 5 (Series 21) - 21SFTP06RXX

Name: Quick Coupling, European profile, ND 5 (Series 21) - 21SFTP06RXX
SKU: 21SFTP06RXX
Availability: OutOfStock

Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.

Availability:

Backordered

SKU: 21SFTP06RXX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Operation Type	n/a
Specifications Met	RoHS	Seal Material	Without seal
Maximum Operating Temperature	up to 240 °C	Minimum Operating Temperature	down to -40 °C
Hex Size	n/a	Valve Included	No
For Fluid Type	Air	Technology	Fluid & Gas Handling
Application	Medical	Industry	General Industrial
Body Material	Stainless Steel 303	Outside Diameter	n/a mm
Region of Origin	Germany	Product Style	Quick-Connect
Maximum Operating Pressure	up to 507 psi	Brand	Rectus
Product Type	Pneumatic Quick Couplings	Connection Size	6 mm
Interchange Type	European Profile	Weight	0.009 kg
Plating Type	Without Surface Treatment	Function	Straight-Through
Valve Type	Without Valve	Coupling Half	Plug
Diameter	5 mm (nominal)	Product Series	Series 21
Flow Rate	550 L/min (air)	Connection Type	Hose Barb for Parker plug-in Hose
Version	Single Shut-Off	Connection Size	6 mm
Connection Type	Parker Hose Barb	Materials of Construction	Stainless Steel AISI 303
Coupling Half	Plug
