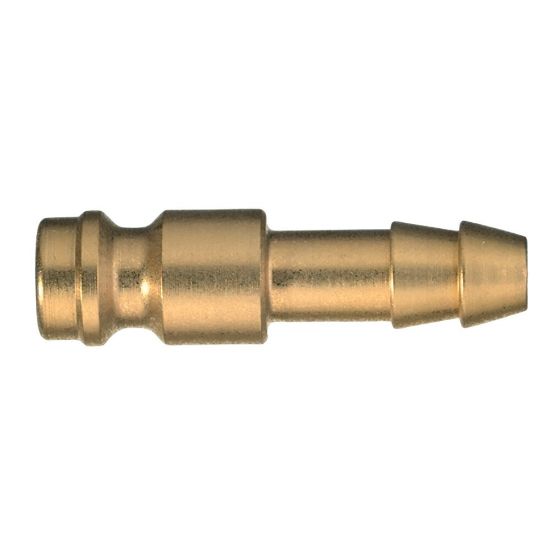

Quick Coupling, European profile, ND 5 (Series 21) - 21SFTF09MXX

Name: Quick Coupling, European profile, ND 5 (Series 21) - 21SFTF09MXX
SKU: 21SFTF09MXX
Availability: OutOfStock

Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.

Availability:

Backordered

SKU: 21SFTF09MXX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	10
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Operation Type	n/a	Shape	Straight
Seal Material	Without seal	Minimum Operating Temperature	down to -40 °C
Hex Size	n/a	Valve Included	No
Technology	Pneumatics	Industry	Healthcare & Life Sciences
For Fluid Type	Gases	Outside Diameter	n/a mm
Region of Origin	Germany	Connection Type	Hose Barb
Specifications Met	ATEX	Product Style	Quick-Connect
Maximum Operating Pressure	up to 35 bar	Brand	Rectus
Product Type	Pneumatic Quick Couplings	Connection Size	9 mm
Interchange Type	European Profile	Application	Energy Management
Weight	0.009 kg	Plating Type	Without Surface Treatment
Maximum Operating Temperature	up to 464 °F	Function	Straight-Through
Valve Type	Without Valve	Coupling Half	Plug
Diameter	5 mm (nominal)	Product Series	Series 21
Flow Rate	2.7 L/min (water)	Compatible Fitting	Series 21 Coupler
Connection Type	Hose Barb	Materials of Construction	Brass
Version	Single Shut-Off	Connection Size	9 mm
Coupling Half	Plug
