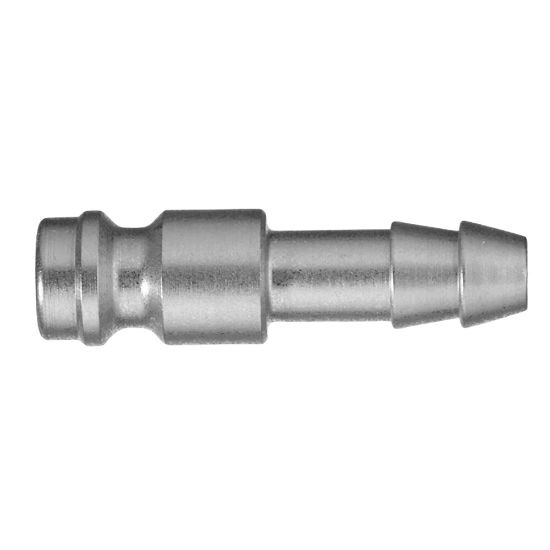

Quick Coupling, European profile, ND 5 (Series 21) - 21SFTF09EXX

Name: Quick Coupling, European profile, ND 5 (Series 21) - 21SFTF09EXX
SKU: 21SFTF09EXX
Availability: OutOfStock

Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.

Availability:

Backordered

SKU: 21SFTF09EXX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Application	Industrial Machinery
Operation Type	n/a	Shape	Straight
Seal Material	Without seal	Maximum Operating Temperature	up to 240 °C
Minimum Operating Temperature	down to -40 °C	Hex Size	n/a
Valve Included	No	For Fluid Type	Water
Technology	Fluid & Gas Handling	Body Material	Stainless Steel 316L
Outside Diameter	n/a mm	Region of Origin	Germany
Connection Type	Hose Barb	Specifications Met	ATEX
Product Style	Quick-Connect	Maximum Operating Pressure	up to 35 bar
Brand	Rectus	Product Type	Pneumatic Quick Couplings
Connection Size	9 mm	Interchange Type	European Profile
Industry	Electronics	Weight	0.008 kg
Plating Type	Without Surface Treatment	Function	Straight-Through
Valve Type	Without Valve	Coupling Half	Plug
Diameter	5 mm (nominal)	Product Series	Series 21
Flow Rate	2.7 L/min (water)	Compatible Fitting	Series 21 Coupler
Connection Type	Hose Barb	Version	Single Shut-Off
Connection Size	9 mm	Materials of Construction	Stainless Steel AISI 316L
Coupling Half	Plug
