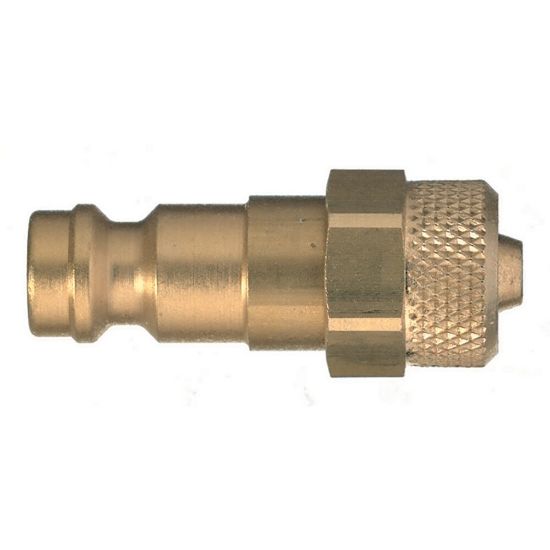

Quick Coupling, European profile, ND 5 (Series 21) - 21SFKO10MXN

Name: Quick Coupling, European profile, ND 5 (Series 21) - 21SFKO10MXN
SKU: 21SFKO10MXN
Availability: OutOfStock

Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.

Availability:

Backordered

SKU: 21SFKO10MXN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	10
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Weight	0.032 kg	Operation Type	n/a
Specifications Met	RoHS	Brand	Parker
Shape	Straight	Seal Material	Without seal
Maximum Operating Temperature	up to 240 °C	Minimum Operating Temperature	down to -40 °C
Valve Included	No	Technology	Fluid & Gas Handling
Industry	Healthcare & Life Sciences	For Fluid Type	Gases
Application	Electronics	Hex Size	17 mm
Region of Origin	Germany	Product Style	Quick-Connect
Maximum Operating Pressure	up to 35 bar	Plating Type	Nickel-plated
Product Type	Pneumatic Quick Couplings	Interchange Type	European Profile
Connection Type	Tube with Hose Nut, without Spring Guard	Function	Straight-Through
Valve Type	Without Valve	Coupling Half	Plug
Diameter	5 mm (nominal)	Product Series	Series 21
Flow Rate	550 L/min (air)	Compatible Fitting	Series 21 Coupler
Connection Size	8x10 mm
Materials of Construction	Brass, Nickel-plated	Version	Single Shut-Off
Connection Type	With Plastic Hose Connection	Coupling Half	Plug
Connection Size	8x10 mm

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials
