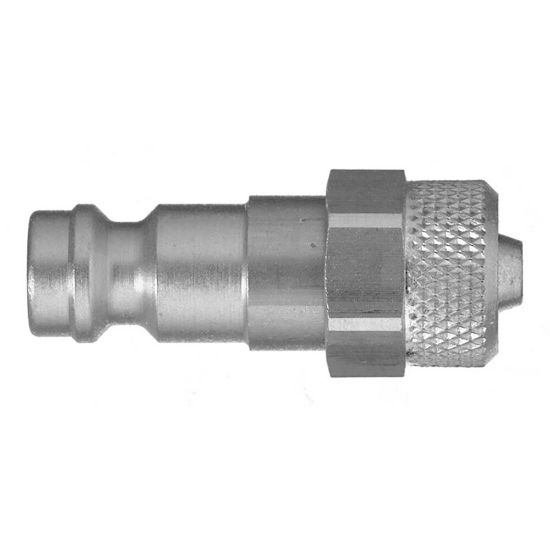

Quick Coupling, European profile, ND 5 (Series 21) - 21SFKO06RXX

Name: Quick Coupling, European profile, ND 5 (Series 21) - 21SFKO06RXX
SKU: 21SFKO06RXX
Availability: OutOfStock

Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.

Availability:

Backordered

SKU: 21SFKO06RXX

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.015 kg	Division	Low Pressure Connectors Europe Division
Quantity per Box	1	Division	Low Pressure Connectors Europe Division
Operation Type	n/a	Brand	Parker
Shape	Straight	Seal Material	Without seal
Maximum Operating Temperature	up to 240 °C	Minimum Operating Temperature	down to -40 °C
Valve Included	No	For Fluid Type	Water
Technology	Fluid & Gas Handling	Hex Size	12 mm
Body Material	Stainless Steel 303	Region of Origin	Germany
Specifications Met	ATEX	Product Style	Quick-Connect
Maximum Operating Pressure	up to 35 bar	Product Type	Pneumatic Quick Couplings
Interchange Type	European Profile	Application	Energy Management
Industry	Electronics	Connection Type	Tube with Hose Nut, without Spring Guard
Plating Type	Without Surface Treatment	Connection Size	4x6 mm
Function	Straight-Through	Valve Type	Without Valve
Coupling Half	Plug	Diameter	5 mm (nominal)
Product Series	Series 21	Flow Rate	2.7 L/min (water)
Compatible Fitting	Series 21 Coupler
Version	Single Shut-Off	Connection Size	4x6 mm
Connection Type	With Plastic Hose Connection	Materials of Construction	Stainless Steel AISI 303
Coupling Half	Plug
