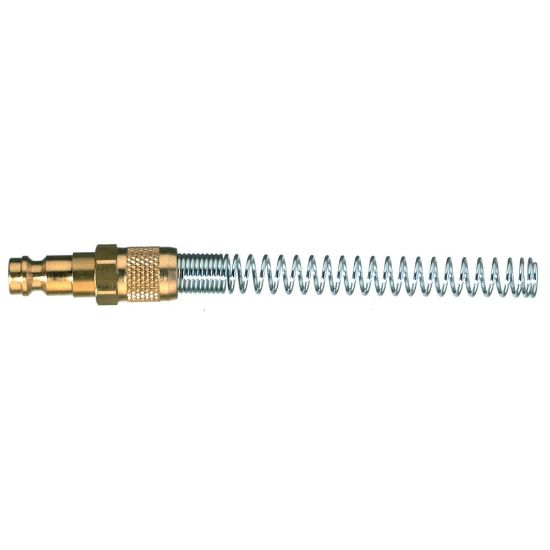

Quick Coupling, European profile, ND 5 (Series 21) - 21SFKK08MXX

Name: Quick Coupling, European profile, ND 5 (Series 21) - 21SFKK08MXX
SKU: 21SFKK08MXX
Availability: OutOfStock

Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.

Availability:

Backordered

SKU: 21SFKK08MXX

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.029 kg	Division	Low Pressure Connectors Europe Division
Quantity per Box	10	Division	Low Pressure Connectors Europe Division
Body Material	BRASS	Operation Type	n/a
For Fluid Type	Compressed Air	Brand	Parker
Seal Material	Without seal	Maximum Operating Temperature	up to 240 °C
Minimum Operating Temperature	down to -40 °C	Hex Size	n/a
Valve Included	No	Technology	Fluid & Gas Handling
Outside Diameter	n/a mm	Region of Origin	Germany
Connection Type	Tube with Spring Guard	Specifications Met	ATEX
Product Style	Quick-Connect	Maximum Operating Pressure	up to 35 bar
Product Type	Pneumatic Quick Couplings	Interchange Type	European Profile
Application	Energy Management	Industry	Electronics
Plating Type	Without Surface Treatment	Function	Straight-Through
Valve Type	Without Valve	Coupling Half	Plug
Diameter	5 mm (nominal)	Product Series	Series 21
Flow Rate	2.7 L/min (water)	Connection Size	6x8 mm
Materials of Construction	Brass	Version	Single Shut-Off
Connection Type	Plastic Hose Connection with Spring Guard	Coupling Half	Plug
Connection Size	6x8 mm
