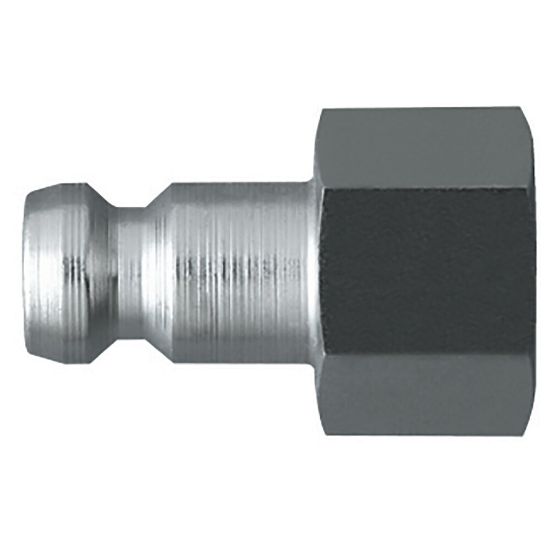

Quick Coupling, European profile, ND 5 (Series 21) - 21SFIW17RXX

Name: Quick Coupling, European profile, ND 5 (Series 21) - 21SFIW17RXX
SKU: 21SFIW17RXX
Availability: OutOfStock

Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.

Availability:

Backordered

SKU: 21SFIW17RXX

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.016 kg	Division	Low Pressure Connectors Europe Division
Quantity per Box	1	Division	Low Pressure Connectors Europe Division
Operation Type	n/a	Shape	Straight
Seal Material	Without seal	Maximum Operating Temperature	up to 240 °C
Valve Included	No	Technology	Fluid & Gas Handling
For Fluid Type	Gases	Application	Electronics
Hex Size	19 mm	Body Material	Stainless Steel 303
Region of Origin	Germany	Specifications Met	ATEX
Product Style	Quick-Connect	Maximum Operating Pressure	up to 35 bar
Brand	Rectus	Product Type	Pneumatic Quick Couplings
Connection Size	G 3/8	Interchange Type	European Profile
Connection Type	BSPP ISO 228 Parallel	Industry	Electronics
Plating Type	Without Surface Treatment	Function	Straight-Through
Valve Type	Without Valve	Coupling Half	Plug
Minimum Operating Temperature	down to -40 °F	Diameter	5 mm (nominal)
Product Series	Series 21	Flow Rate	550 L/min (air)
Compatible Fitting	Series 21 Coupler
Version	Single Shut-Off	Connection Size	3/8"
Connection Type	Female, BSPP	Materials of Construction	Stainless Steel AISI 303
Coupling Half	Plug
