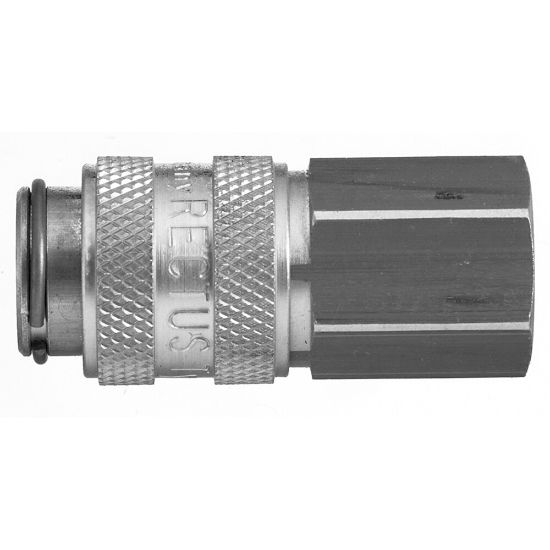

Quick Coupling, European profile, ND 5 (Series 21) - 21KBIW10MVX

Name: Quick Coupling, European profile, ND 5 (Series 21) - 21KBIW10MVX
SKU: 21KBIW10MVX
Availability: OutOfStock

Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.

Availability:

Backordered

SKU: 21KBIW10MVX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Minimum Operating Temperature	-15 °C	Specifications Met	RoHS
Brand	Parker	Valve Included	Yes
Coupling Half	Coupler	Technology	Pneumatics
Seal Material	FKM	Application	Laboratory
Maximum Operating Temperature	200 °C	Industry	Healthcare & Life Sciences
For Fluid Type	Gases	Outside Diameter	16 mm
Hex Size	14 mm	Region of Origin	Germany
Product Style	Quick-Connect	Maximum Operating Pressure	up to 507 psi
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Interchange Type	European Profile	Function	Double Shut-Off
Connection Type	Female ISO 228 Parallel	Valve Type	Standard Valve
Plating Type	Without Surface Treatment	Connection Size	G 1/8
Diameter	5 mm (nominal)	Product Series	Series 21
Flow Rate	2.7 L/min (water)	Weight	0.0298 kg
Materials of Construction	Brass	Version	Double Shut-Off
Coupling Half	Coupler	Connection Type	Female, BSPP
Connection Size	1/8"
