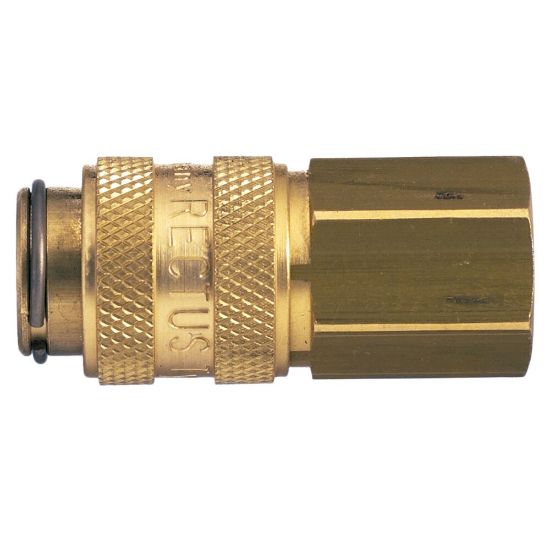

Quick Coupling, European profile, ND 5 (Series 21) - 21KBIW10MPN

Name: Quick Coupling, European profile, ND 5 (Series 21) - 21KBIW10MPN
SKU: 21KBIW10MPN
Availability: OutOfStock

Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.

Availability:

Backordered

SKU: 21KBIW10MPN

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.029 kg	Division	Low Pressure Connectors Europe Division
Quantity per Box	5	Division	Low Pressure Connectors Europe Division
Body Material	BRASS	Sleeve Material	BRASS
Minimum Operating Temperature	-20 °C	Seal Material	NBR
Specifications Met	RoHS	Brand	Parker
Shape	Straight	Valve Included	Yes
Coupling Half	Coupler	Maximum Operating Temperature	212 °F
Technology	Fluid & Gas Handling	Industry	Healthcare & Life Sciences
For Fluid Type	Gases	Outside Diameter	16 mm
Application	Electronics	Hex Size	14 mm
Region of Origin	Germany	Product Style	Quick-Connect
Maximum Operating Pressure	up to 507 psi	Plating Type	Nickel-plated
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Interchange Type	European Profile	Function	Double Shut-Off
Connection Type	BSPP ISO 228 Parallel	Valve Type	Standard Valve
Connection Size	G 1/8	Diameter	5 mm (nominal)
Product Series	Series 21	Compatible Fitting	Series 21 Plug
Flow Rate	2.7 L/min (water)
Materials of Construction	Brass, Nickel-plated	Version	Double Shut-Off
Coupling Half	Coupler	Connection Type	Female, BSPP
Connection Size	1/8"
