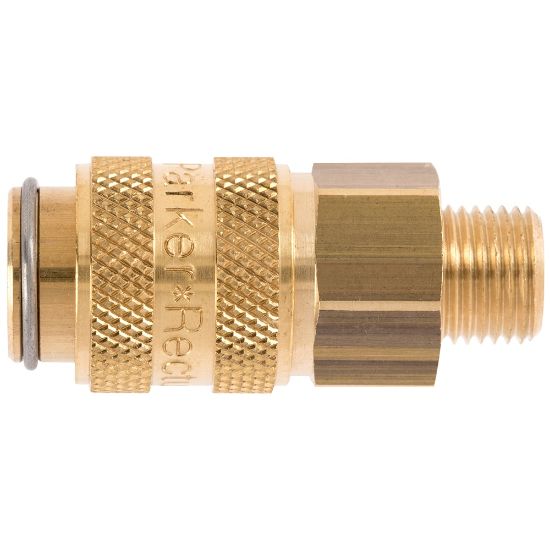

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling, European profile, ND 5 (Series 21) - 21KBAW13MPX

Name: Quick Coupling, European profile, ND 5 (Series 21) - 21KBAW13MPX
SKU: 21KBAW13MPX
Availability: OutOfStock

Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.

Availability:

Backordered

SKU: 21KBAW13MPX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Sleeve Material	BRASS	Maximum Operating Temperature	100 °C
Weight	0.035 kg	Minimum Operating Temperature	-20 °C
Seal Material	NBR	Brand	Parker
Shape	Straight	Connection Size	G 1/4
Industry	Transportation	Valve Included	Yes
Coupling Half	Coupler	Technology	Fluid & Gas Handling
Outside Diameter	16 mm	Hex Size	17 mm
Region of Origin	Germany	Connection Type	Male
Specifications Met	ATEX	Product Style	Quick-Connect
Maximum Operating Pressure	up to 507 psi	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Interchange Type	European Profile
Function	Double Shut-Off	Application	Energy Management
Valve Type	Standard Valve	Plating Type	Without Surface Treatment
For Fluid Type	Chemical Fluids	Diameter	5 mm (nominal)
Product Series	Series 21	Compatible Fitting	Series 21 Plug
Flow Rate	2.7 L/min (water)
Materials of Construction	Brass	Version	Double Shut-Off
Coupling Half	Coupler	Connection Size	1/4"
Connection Type	Male, BSPP
