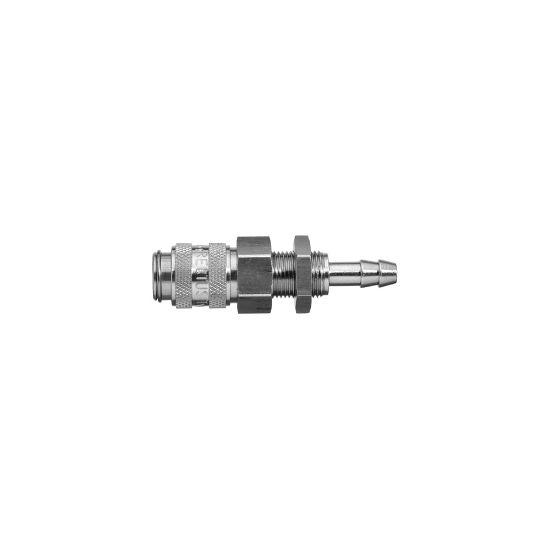

Quick Coupling, European profile, ND 5 (Series 21) - 21KATS06RVX

Name: Quick Coupling, European profile, ND 5 (Series 21) - 21KATS06RVX
SKU: 21KATS06RVX
Availability: OutOfStock

Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.

Availability:

Backordered

SKU: 21KATS06RVX

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.044 kg	Division	Low Pressure Connectors Europe Division
Quantity per Box	1	Division	Low Pressure Connectors Europe Division
Minimum Operating Temperature	-15 °C	Specifications Met	RoHS
For Fluid Type	Compressed Air	Shape	Straight
Valve Included	Yes	Coupling Half	Coupler
Technology	Pneumatics	Seal Material	FKM
Industry	General Industrial	Outside Diameter	16 mm
Hex Size	17 mm	Body Material	Stainless Steel 303
Region of Origin	Germany	Product Style	Quick-Connect
Maximum Operating Pressure	up to 35 bar	Brand	Rectus
Function	Single Shut-Off	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Connection Size	6 mm
Interchange Type	European Profile	Valve Type	Standard Valve
Application	Food & Beverages	Plating Type	Without Surface Treatment
Maximum Operating Temperature	392 °F	Diameter	5 mm (nominal)
Product Series	Series 21	Compatible Fitting	Series 21 Plug
Flow Rate	550 L/min Maximum (air)	Connection Type	Tube Panel Mount with Hose Barb
Connection Type	Panel Mount with Hose Barb	Version	Single Shut-Off
Coupling Half	Coupler	Connection Size	6 mm
Materials of Construction	Stainless Steel AISI 303
