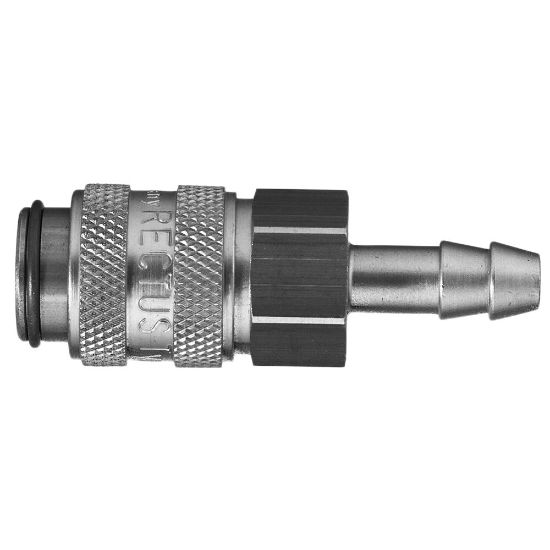

Quick Coupling, European profile, ND 5 (Series 21) - 21KATF10RVX

Name: Quick Coupling, European profile, ND 5 (Series 21) - 21KATF10RVX
SKU: 21KATF10RVX
Availability: OutOfStock

Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.

Availability:

Backordered

SKU: 21KATF10RVX

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.027 kg	Division	Low Pressure Connectors Europe Division
Quantity per Box	1	Division	Low Pressure Connectors Europe Division
Brand	Parker	Shape	Straight
Valve Included	Yes	Coupling Half	Coupler
For Fluid Type	Air	Technology	Pneumatics
Minimum Operating Temperature	5 °F	Seal Material	FKM
Maximum Operating Temperature	200 °C	Outside Diameter	16 mm
Hex Size	14 mm	Body Material	Stainless Steel 303
Region of Origin	Germany	Connection Type	Hose Barb
Specifications Met	ATEX	Application	Air & Gas Compressor
Product Style	Quick-Connect	Maximum Operating Pressure	up to 35 bar
Function	Single Shut-Off	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Connection Size	10 mm
Interchange Type	European Profile	Industry	Electronics
Valve Type	Standard Valve	Plating Type	Without Surface Treatment
Diameter	5 mm (nominal)	Product Series	Series 21
Compatible Fitting	Series 21 Plug	Flow Rate	550 L/min (air)
Connection Type	Hose Barb	Version	Single Shut-Off
Coupling Half	Coupler	Connection Size	10 mm
Materials of Construction	Stainless Steel AISI 303
