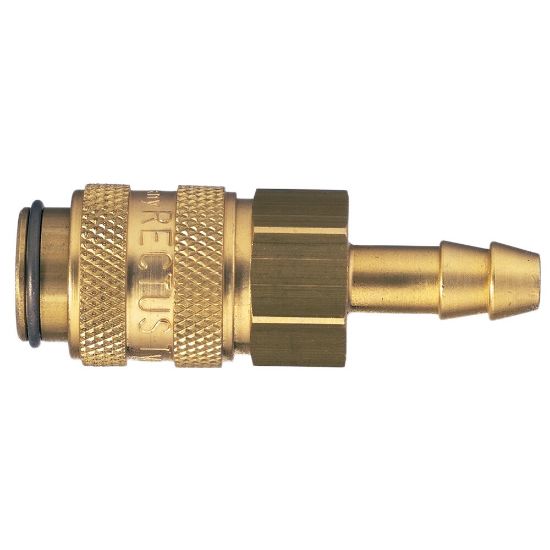

Quick Coupling, European profile, ND 5 (Series 21) - 21KATF05MPN

Name: Quick Coupling, European profile, ND 5 (Series 21) - 21KATF05MPN
SKU: 21KATF05MPN
Availability: OutOfStock

Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.

Availability:

Backordered

SKU: 21KATF05MPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	10
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Maximum Operating Temperature	100 °C	Minimum Operating Temperature	-20 °C
Seal Material	NBR	For Fluid Type	Compressed Air
Industry	Transportation	Valve Included	Yes
Coupling Half	Coupler	Technology	Fluid & Gas Handling
Outside Diameter	16 mm	Hex Size	14 mm
Region of Origin	Germany	Connection Type	Hose Barb
Specifications Met	ATEX	Application	Trucks & Trailers
Product Style	Quick-Connect	Maximum Operating Pressure	up to 35 bar
Brand	Rectus	Function	Single Shut-Off
Plating Type	Nickel-plated	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Interchange Type	European Profile
Valve Type	Standard Valve	Connection Size	5 mm
Diameter	5 mm (nominal)	Product Series	Series 21
Flow Rate	550 L/min (air)	Weight	0.0264 kg
Connection Type	Hose Barb	Materials of Construction	Brass, Nickel-plated
Version	Single Shut-Off	Coupling Half	Coupler
Connection Size	5 mm
