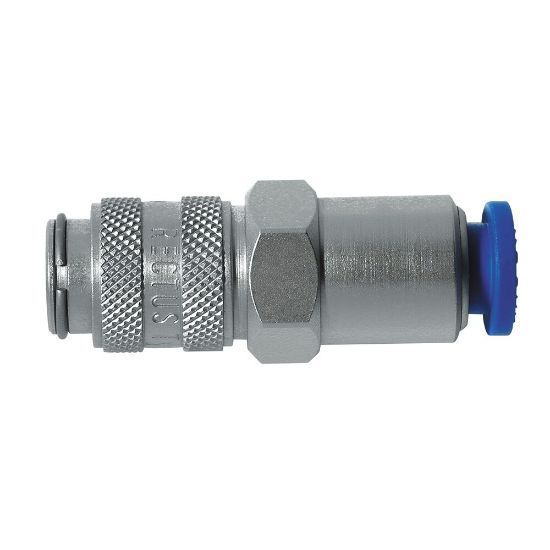

Quick Coupling, European profile, ND 5 (Series 21) - 21KARP06MPN

Name: Quick Coupling, European profile, ND 5 (Series 21) - 21KARP06MPN
SKU: 21KARP06MPN
Availability: OutOfStock

Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.

Availability:

Backordered

SKU: 21KARP06MPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	10
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Sleeve Material	BRASS	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-20 °C	Seal Material	NBR
Specifications Met	RoHS	Brand	Parker
Connection Size	n/a	Valve Included	Yes
Coupling Half	Coupler	For Fluid Type	Air
Technology	Fluid & Gas Handling	Industry	Healthcare & Life Sciences
Hex Size	14 mm	Region of Origin	Germany
Product Style	Quick-Connect	Maximum Operating Pressure	up to 507 psi
Function	Single Shut-Off	Plating Type	Nickel-plated
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Interchange Type	European Profile	Outside Diameter	13.2 mm
Valve Type	Standard Valve	Application	Textile Machinery
Connection Type	Push-In	Diameter	5 mm (nominal)
Product Series	Series 21	Compatible Fitting	Series 21 Plug
Flow Rate	550 L/min (air)	Weight	0.0316 kg
Materials of Construction	Brass, Nickel-plated	Version	Single Shut-Off
Coupling Half	Coupler	Connection Type	Push-In
Connection Size	n/a
