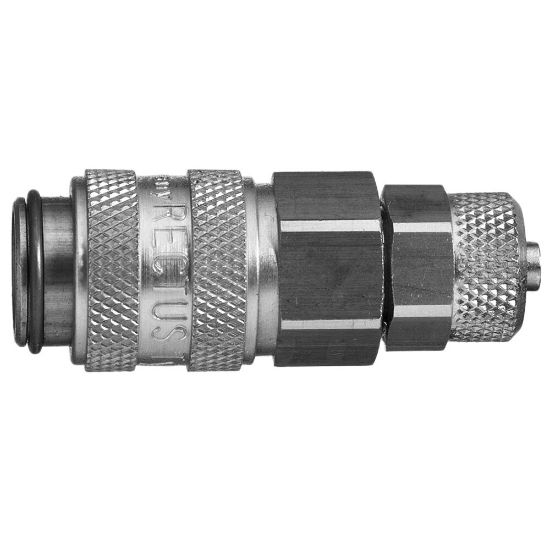

Quick Coupling, European profile, ND 5 (Series 21) - 21KAKS06EVX

Name: Quick Coupling, European profile, ND 5 (Series 21) - 21KAKS06EVX
SKU: 21KAKS06EVX
Availability: OutOfStock

Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.

Availability:

Backordered

SKU: 21KAKS06EVX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Weight	0.035 kg
Specifications Met	RoHS	For Fluid Type	Compressed Air
Brand	Parker	Shape	Straight
Industry	Transportation	Valve Included	Yes
Coupling Half	Coupler	Technology	Pneumatics
Minimum Operating Temperature	5 °F	Body Material	Stainless Steel 316L
Seal Material	FKM	Maximum Operating Temperature	200 °C
Outside Diameter	16 mm	Hex Size	14 mm
Region of Origin	Germany	Product Style	Quick-Connect
Maximum Operating Pressure	up to 507 psi	Function	Single Shut-Off
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Interchange Type	European Profile	Application	Energy Management
Valve Type	Standard Valve	Plating Type	Without Surface Treatment
Connection Size	4x6 mm	Diameter	5 mm (nominal)
Product Series	Series 21	Compatible Fitting	Series 21 Plug
Flow Rate	550 L/min Maximum (air)	Connection Type	Tube Panel mount without Spring Guard
Version	Single Shut-Off	Coupling Half	Coupler
Connection Size	4x6 mm	Connection Type	Panel Mount with Plastic Hose Connection
Materials of Construction	Stainless Steel AISI 316L
