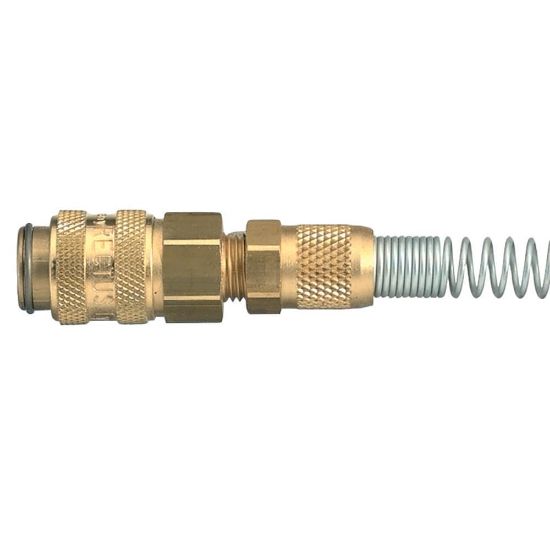

Quick Coupling, European profile, ND 5 (Series 21) - 21KAKK08MPX

Name: Quick Coupling, European profile, ND 5 (Series 21) - 21KAKK08MPX
SKU: 21KAKK08MPX
Availability: OutOfStock

Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.

Availability:

Backordered

SKU: 21KAKK08MPX

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.044 kg	Division	Low Pressure Connectors Europe Division
Quantity per Box	10	Division	Low Pressure Connectors Europe Division
Body Material	BRASS	Sleeve Material	BRASS
Seal Material	NBR	Shape	Straight
Minimum Operating Temperature	-4 °F	Industry	Transportation
Valve Included	Yes	Coupling Half	Coupler
Maximum Operating Temperature	212 °F	For Fluid Type	Air
Technology	Pneumatics	Outside Diameter	16 mm
Hex Size	14 mm	Region of Origin	Germany
Connection Type	Tube with Spring Guard	Specifications Met	ATEX
Product Style	Quick-Connect	Maximum Operating Pressure	up to 507 psi
Brand	Rectus	Function	Single Shut-Off
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Interchange Type	European Profile	Application	Energy Management
Valve Type	Standard Valve	Plating Type	Without Surface Treatment
Diameter	5 mm (nominal)	Product Series	Series 21
Compatible Fitting	Series 21 Plug	Flow Rate	550 L/min (air)
Connection Size	6x8 mm
Materials of Construction	Brass	Version	Single Shut-Off
Coupling Half	Coupler	Connection Type	Plastic Hose Connection with Spring Guard
Connection Size	6x8 mm
