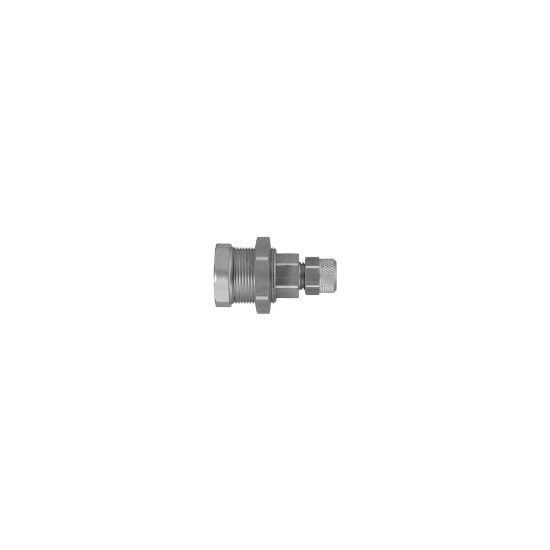

Quick Coupling, European profile, ND 5 (Series 21) - 21KAKE06MPN

Name: Quick Coupling, European profile, ND 5 (Series 21) - 21KAKE06MPN
SKU: 21KAKE06MPN
Availability: OutOfStock

Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.

Availability:

Backordered

SKU: 21KAKE06MPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	10
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Maximum Operating Temperature	100 °C	Minimum Operating Temperature	-20 °C
Seal Material	NBR	Specifications Met	RoHS
Brand	Parker	Valve Included	Yes
Coupling Half	Coupler	For Fluid Type	Air
Technology	Pneumatics	Industry	General Industrial
Hex Size	22 mm	Outside Diameter	24 mm
Region of Origin	Germany	Weight	0.064 kg
Product Style	Quick-Connect	Maximum Operating Pressure	up to 507 psi
Function	Single Shut-Off	Plating Type	Nickel-plated
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Interchange Type	European Profile	Valve Type	Standard Valve
Application	Food & Beverages	Connection Size	4x6 mm
Diameter	5 mm (nominal)	Product Series	Series 21
Flow Rate	550 L/min (air)	Connection Type	Tube Panel mount with Plastic Hose Connection (for front panel installation)
Materials of Construction	Brass, Nickel-plated	Version	Single Shut-Off
Coupling Half	Coupler	Connection Size	4x6 mm
Connection Type	Panel Mount with Plastic Hose Connection (for front panel installation)
