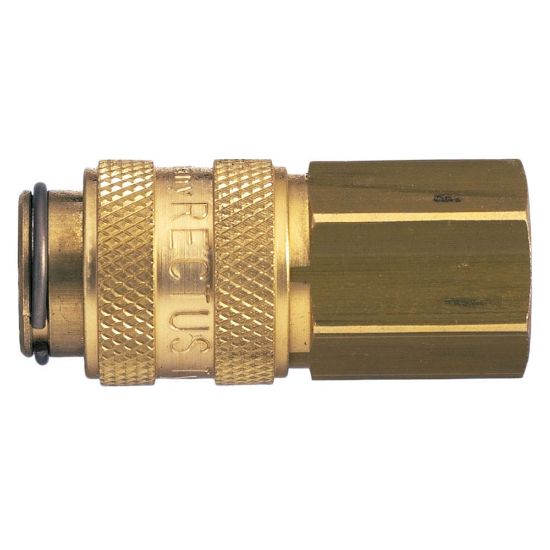

Quick Coupling, European profile, ND 5 (Series 21) - 21KAIW17MPN

Name: Quick Coupling, European profile, ND 5 (Series 21) - 21KAIW17MPN
SKU: 21KAIW17MPN
Availability: OutOfStock

Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.

Availability:

Backordered

SKU: 21KAIW17MPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	10
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Sleeve Material	BRASS	Maximum Operating Temperature	100 °C
Weight	0.042 kg	Seal Material	NBR
Brand	Parker	Shape	Straight
Minimum Operating Temperature	-4 °F	Valve Included	Yes
Coupling Half	Coupler	For Fluid Type	Air
Technology	Pneumatics	Industry	Healthcare & Life Sciences
Outside Diameter	16 mm	Hex Size	19 mm
Region of Origin	Germany	Connection Type	Female
Specifications Met	ATEX	Product Style	Quick-Connect
Maximum Operating Pressure	up to 35 bar	Function	Single Shut-Off
Plating Type	Nickel-plated	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Connection Size	G 3/8
Interchange Type	European Profile	Valve Type	Standard Valve
Application	Food & Beverages	Diameter	5 mm (nominal)
Product Series	Series 21	Compatible Fitting	Series 21 Plug
Flow Rate	550 L/min (air)
Materials of Construction	Brass, Nickel-plated	Version	Single Shut-Off
Coupling Half	Coupler	Connection Size	3/8"
Connection Type	Female, BSPP
