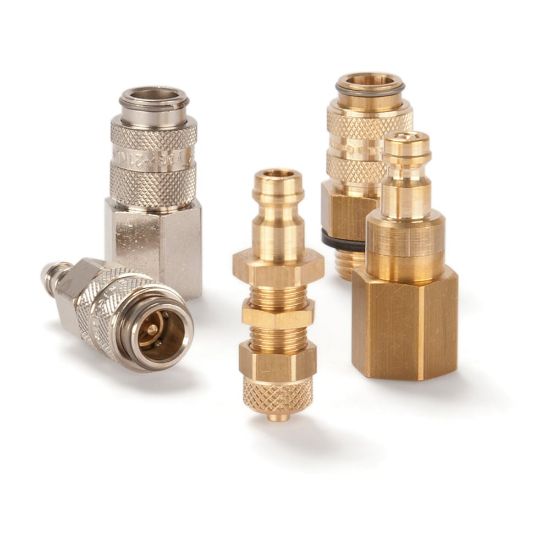

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling, European profile, ND 5 (Series 21) - 21KAAW10RKX

Name: Quick Coupling, European profile, ND 5 (Series 21) - 21KAAW10RKX
SKU: 21KAAW10RKX
Availability: OutOfStock

Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.

Availability:

Backordered

SKU: 21KAAW10RKX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	For Fluid Type	Compressed Air
Brand	Parker	Shape	Straight
Coupling Half	Coupler	Minimum Operating Temperature	-25 °C
Technology	Pneumatics	Industry	General Industrial
Hex Size	14 mm	Body Material	Stainless Steel 303
Region of Origin	Germany	Connection Type	Male
Specifications Met	ATEX	Product Style	Quick-Connect
Maximum Operating Pressure	up to 35 bar	Function	Single Shut-Off
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Interchange Type	European Profile	Valve Type	Standard Valve
Application	Textile Machinery	Plating Type	Without Surface Treatment
Seal Material	FFKM	Connection Size	G 1/8
Diameter	5 mm (nominal)	Product Series	Series 21
Compatible Fitting	Series 21 Plug	Weight	0.0248 kg
Flow Rate	2.7 L/min (water)	Maximum Operating Temperature	240 °C
Version	Single Shut-Off	Coupling Half	Coupler
Connection Type	Male, BSPP	Connection Size	1/8"
Materials of Construction	Stainless Steel AISI 303
