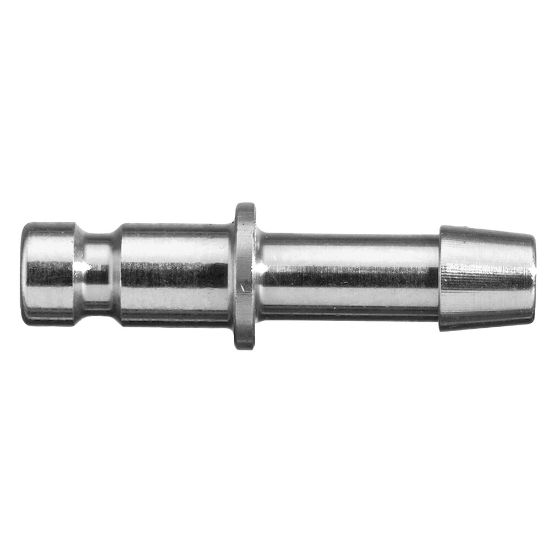

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SFTF05RXX

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SFTF05RXX
SKU: 20SFTF05RXX
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20SFTF05RXX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Application	Industrial Machinery
Brand	Parker	Shape	Straight
Seal Material	Without seal	Maximum Operating Temperature	up to 240 °C
Minimum Operating Temperature	down to -40 °C	Length	22 mm
Valve Included	No	Technology	Pneumatics
Industry	Healthcare & Life Sciences	Body Material	Stainless Steel 303
Region of Origin	Germany	Connection Type	Hose Barb
Specifications Met	ATEX	Product Style	Quick-Connect
Maximum Operating Pressure	up to 35 bar	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Interchange Type	European Profile
Product Series	Series 20	Diameter	2.7 mm (nominal)
Flow Rate	165 L/min (air)	Plating Type	Without Surface Treatment
Connection Size	5 mm	For Fluid Type	Inert Gas
Function	Straight-Through	Valve Type	Without Valve
Coupling Half	Plug	Compatible Fitting	Series 20 Coupler
Weight	0.002 kg
Type	Plug	Connection Type	Hose Barb
Connection Thread Size	n/a	External Hex (mm)	n/a
Version	Single Shut-Off	Connection Size	5 mm
Materials of Construction	Stainless Steel AISI 303	Hose I.D.	5 mm
Coupling Half	Plug
