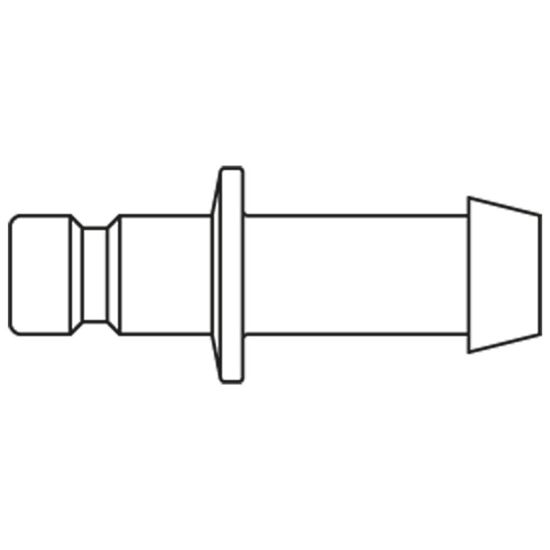

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SFTF02MXN

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SFTF02MXN
SKU: 20SFTF02MXN
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20SFTF02MXN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Shape	Straight	Seal Material	Without seal
Maximum Operating Temperature	up to 240 °C	Valve Included	No
Technology	Fluid & Gas Handling	Application	Medical
Industry	General Industrial	Region of Origin	Germany
Connection Type	Hose Barb	Specifications Met	ATEX
Product Style	Quick-Connect	Maximum Operating Pressure	up to 507 psi
Brand	Rectus	Plating Type	Nickel-plated
Operation Type	Sleeve	Interchange Type	European Profile
Product Series	Series 20	Diameter	2.7 mm (nominal)
For Fluid Type	Chemical Fluids	Connection Size	2 mm
Function	Straight-Through	Flow Rate	1.5 L/min (water)
Valve Type	Without Valve	Product Type	Pneumatics Quick Couplings
Coupling Half	Plug	Compatible Fitting	Series 20 Coupler
Length	24 mm	Weight	0.0014 kg
Minimum Operating Temperature	down to -40 °F
Type	Plug	Hose I.D.	2 mm
Connection Type	Hose Barb	Connection Thread Size	n/a
Materials of Construction	Brass, Nickel-plated	External Hex (mm)	n/a
Connection Size	2 mm	Version	Straight-Through
Coupling Half	Plug
